2027 Hyundai IONIQ 9 nearby Loganville, GA
The 2027 Hyundai IONIQ 9 is a three-row electric vehicle available in S, SE, SEL, Limited, and Calligraphy trim levels. Its powertrain range includes rear-wheel-drive and all-wheel-drive configurations, with maximum output reaching 422 horsepower and 516 lb-ft of torque. Every configuration uses a 110.3-kWh lithium-ion battery, while the estimated all-electric driving range reaches up to 335 miles. The cabin accommodates six or seven occupants, depending on trim, and provides three-row climate control, connected technology, and flexible cargo capacity. Its technical package also includes multiple charging options, a unibody chassis, four-wheel ventilated disc brakes, advanced driver-assistance systems, and trim-specific comfort equipment.
Electric Powertrain, Charging, and Performance
The 2027 Hyundai IONIQ 9 uses permanent-magnet synchronous motor technology and a single-speed reduction gear transmission. The transmission operates through a shift-by-wire system with a column-mounted selector. Rear-wheel-drive and all-wheel-drive configurations provide distinct combinations of power, torque, and estimated driving range. Every model carries a 610-volt battery system with a capacity of 110.3 kWh. A battery heating system with a preconditioning function is also standard across the lineup.
Motor Output and Driving Range
The rear-wheel-drive powertrain produces 160 kW, which corresponds to 215 horsepower, and develops 350 Nm, or 258 lb-ft of torque. This configuration has an estimated all-electric driving range of 335 miles. One all-wheel-drive specification raises output to 226.1 kW, or 303 horsepower, while increasing torque to 605 Nm, or 446 lb-ft. Its estimated range measures 320 miles. The higher-output all-wheel-drive configuration generates 314.6 kW, equivalent to 422 horsepower, along with 700 Nm, or 516 lb-ft of torque, and has an estimated range of 311 miles.
Rear-wheel-drive models use a 13.16 final gear ratio. The all-wheel-drive system uses a 10.65 ratio at the front and a 13.16 ratio at the rear. Drive Mode Select provides Eco, Normal, Sport, Snow, and My Mode settings through a center-console button. These selectable modes allow the driver to choose among the available operating programs from one central control. The digital instrument cluster displays the current drive mode and ready-to-drive status alongside other vehicle information.
Regenerative brake control paddles are mounted on the steering wheel in every trim. The instrument cluster temporarily displays the selected regenerative braking level when the driver operates the paddles. A power gauge supplies additional information about electric power use, while a dedicated charge-level display tracks the battery state. The cluster also shows transmission position through its PRND indicator. This combination places propulsion, regeneration, and battery information within the driver’s primary display area.
Battery Charging and Electrical Equipment
The NACS charge port sits on the passenger-side rear quarter panel and features a power-operated door. When connected to a NACS V3 Supercharger, the battery can charge from 10 to 80 percent in 40 minutes. A 350-kW DC fast charger used with a CCS adapter completes the same charging interval in 24 minutes. A 50-kW DC fast charger with a CCS adapter requires 109 minutes for a 10-to-80-percent charge. For Level 2 charging, a 240-volt, 48-amp, 11-kW connection completes the specified 10-to-80-percent interval in 9 hours and 40 minutes.
An ICCB dual-voltage charging cable is standard across the range. Bluelink® Remote Charge Access provides a connected method for accessing charging functions. Limited and Calligraphy models add a cargo-area Vehicle-to-Load two-way onboard charger. The vehicle also uses a separate 12-volt non-traction electrical system. Together, the standard and available equipment supports home charging, compatible DC fast charging, battery preparation, and external electrical functionality.
Chassis, Steering, Braking, and Exterior Equipment
The 2027 Hyundai IONIQ 9 uses a unibody construction made primarily from advanced high-strength steel and high-tensile steel. Its suspension combines a MacPherson®-strut front design with a five-link rear layout. Gas dampers are fitted at both the front and rear. Rack-mounted motor-driven power steering supplies steering assistance, while ventilated disc brakes serve all four wheels. Exterior equipment includes trim-specific wheels, automatic lighting, aerodynamic components, and power-operated access features.
Suspension and Steering Specifications
The front MacPherson® strut suspension provides a compact independent layout with gas dampers. A multi-link rear suspension uses five links and its own set of gas dampers. The rack-and-pinion steering gear includes rack-mounted electric power assistance. The steering system has an overall ratio of 16.02 at 360 degrees and requires 2.93 turns from lock to lock. Its curb-to-curb turning diameter measures 41 feet.
The vehicle measures 199.2 inches long, 78.0 inches wide, and 70.5 inches high. A 123.2-inch wheelbase separates the front and rear axles. The front overhang measures 34.6 inches, while the rear overhang measures 41.3 inches. Minimum ground clearance stands at 6.9 inches. The listed approach and departure angles measure 20.1 and 22.9 degrees, respectively.
Braking and Stability Systems
The front ventilated brake discs measure 360 millimeters in diameter and 30 millimeters in thickness. Ventilated rear discs measure 345 millimeters in diameter and 20 millimeters in thickness. An active hydraulic brake booster works with the regenerative braking system. Four-wheel anti-lock braking includes Electronic Brake-force Distribution, and Brake Assist supplies additional braking support. The electric parking brake also includes Automatic Vehicle Hold.
Hill-start Assist Control helps manage the vehicle during starts on an incline. Vehicle Stability Management works with Electronic Stability Control, Traction Control, and Brake Assist. The Tire Pressure Monitoring System includes an individual tire indicator. Regenerative braking operates alongside the conventional four-wheel disc brake system. These components coordinate deceleration, stability management, traction control, and vehicle-hold functions.
Wheels, Lighting, and Body Features
S and SE trims use 19-by-8-inch alloy wheels with a 53.5-millimeter offset and 255/60R19 tires. The SEL receives 20-by-8-inch alloy wheels with a 58.5-millimeter offset and 275/50R20 tires. The Limited and Calligraphy models use 21-by-9-inch wheels with a 58.5-millimeter offset and 285/45R21 tires. The Limited and Calligraphy feature five-spoke wheel designs, while the Calligraphy Black Ink specification uses a turbine design. Every trim includes a tire mobility kit.
Automatic LED projector headlights, LED daytime running lights, LED taillights, and an LED center high-mount stop lamp are standard. High Beam Assist is also included on every 2027 Hyundai IONIQ 9. Heated exterior mirrors carry LED turn-signal indicators and support the standard Blind-Spot Collision-Avoidance Assist system. Power-folding mirrors begin with the SEL trim. Rain-sensing windshield wipers and aero wiper blades are standard throughout the lineup.
Automatic flush-type door handles provide access on every trim. Active air flaps are positioned in the lower front grille, and the body has the lowest listed coefficient of drag of 0.269. The roof includes flush-type side rails and an integrated rear spoiler with an LED center high-mount stop lamp. A power liftgate with automatic opening is standard, while Limited and Calligraphy models add a panoramic sunroof. The wheel-arch treatment ranges from non-painted black on S, SE, and SEL models to glossy black and body-color detailing on the Limited and a body-color finish on the Calligraphy.
Solar glass covers the windshield and front doors. Laminated acoustic glass is used for the windshield and the first- and second-row side windows. These glass specifications address solar exposure at the front and acoustic treatment along the first two seating rows. Standard LED interior lights provide cabin illumination across all trims. Ambient lighting begins with the SEL model.
Interior Space, Seating, and Utility
The 2027 Hyundai IONIQ 9 provides three seating rows with either six or seven passenger capacity. S, SE, and SEL models use seven-passenger layouts, while Limited and Calligraphy trims accommodate six occupants. Seating materials, adjustment functions, ventilation, and second-row configurations vary by trim. The climate-control system serves every seating row through automatic temperature controls and dedicated rear vents. Cargo and towing specifications add functional capacity beyond passenger transportation.
Front and Second-Row Seating
S and SE models use stain-resistant cloth seating surfaces. The SEL, Limited, and Calligraphy models receive H-Tex®-trimmed seating. Every trim includes an 8-way power driver’s seat and heated front seats. An eight-way power front-passenger seat begins with the SE trim. Ventilated front seats are standard in SEL, Limited, and Calligraphy models.
Power lumbar support varies by trim and seating position. The S provides two-way power lumbar adjustment for the driver. SE and SEL models add two-way power lumbar adjustment for the front passenger. Limited and Calligraphy trims provide four-way driver lumbar adjustment and two-way passenger lumbar adjustment. These two upper trims also include an integrated memory system for the driver.

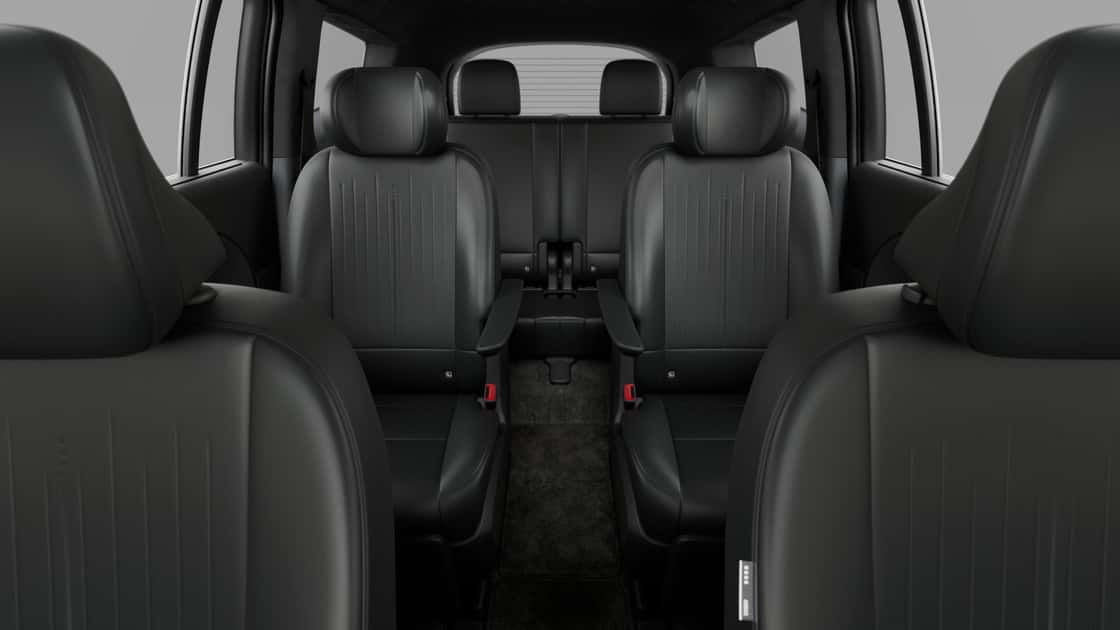

S, SE, and SEL models use a second-row bench seat with fore-and-aft sliding capability. Their manual entry-assist system uses a tilt-type mechanism on the right and a basic mechanism on the left. Limited and Calligraphy models replace the bench with four-way power captain’s chairs. These chairs include one-touch walk-in access, wing-type head restraints, and leg rests. Ventilation is also standard for the second-row captain’s chairs.
The third row folds manually in S, SE, and SEL models. Limited and Calligraphy versions add power-folding third-row seating. The Calligraphy further includes heated third-row seats. Seatback pockets are standard across the model range. This trim structure connects the seating arrangement with specific access, folding, heating, and ventilation functions.
Climate Control and Cabin Appointments
Dual automatic temperature control is standard in the front of every model. A separate automatic temperature-control system serves the second row. Dedicated air vents distribute airflow to both the second and third rows. A heat pump is also included on every trim. These systems provide climate-control coverage throughout the three-row cabin.
The steering wheel uses leatherette wrapping in S and SE models, leather in the SEL and Limited, and two-tone leather in the Calligraphy. A heated steering wheel is standard on SEL, Limited, and Calligraphy trims. S, SE, and SEL models provide manual tilt-and-telescoping steering adjustment. Limited and Calligraphy models replace the manual mechanism with power adjustment. Audio and cruise controls are integrated into every steering wheel.
The center console includes a storage compartment and armrest on all trims. Limited and Calligraphy models add a sliding function to the front center console. Front and rear cupholders, illuminated sliding sun visors, assist grips, and an illuminated damped glove compartment are standard. A rear center armrest is included in S, SE, and SEL models with the second-row bench. Two 12-volt outlets are provided, with one in the front and one in the cargo area.
Passenger Dimensions, Cargo Space, and Towing
Without a sunroof, first-, second-, and third-row headroom measures 41.5, 41.0, and 39.7 inches, respectively. With the panoramic sunroof, the corresponding measurements are 39.5, 39.4, and 39.8 inches. First-row legroom measures 41.4 inches, while second-row legroom measures 42.8 inches in both six- and seven-passenger layouts. Third-row legroom measures 32.0 inches in seven-passenger models and 31.0 inches in six-passenger versions. Shoulder room measures 61.4 inches in the first row, 61.0 inches in the second row, and 55.0 inches in the third row.
Hip room measures 58.8 inches in the first row, 57.7 inches in the second row, and 41.7 inches in the third row. Total interior volume measures 185.44 cubic feet. The seven-passenger configuration provides 163.54 cubic feet of passenger volume. Luggage capacity measures 21.9 cubic feet behind the third row and 46.7 cubic feet behind the second row. Folding the rear seating expands capacity to 86.9 cubic feet behind the first row.
Curb weight ranges from 5,507 pounds for the S to 6,008 pounds for the Calligraphy. The SE has a listed curb weight of 5,745 pounds, while the SEL weighs 5,902 pounds and the Limited weighs 5,994 pounds. Rear-wheel-drive S models have a gross vehicle weight rating of 6,900 pounds. The all-wheel-drive SE and SEL and the performance-oriented Limited and Calligraphy configurations have a gross vehicle weight rating of 7,319 pounds. With trailer brakes, towing capacity measures 3,500 pounds for rear-wheel-drive models and 5,000 pounds for all-wheel-drive versions.
Multimedia, Connectivity, and Safety Systems
The 2027 Hyundai IONIQ 9 combines a digital instrument interface with connected multimedia, convenience technology, and advanced driver-assistance equipment. A 12.3-inch navigation system and a separate 12.3-inch digital instrument cluster are standard throughout the lineup. Smartphone connectivity, wireless charging, and USB ports serve occupants in all three rows. Standard safety technologies address forward hazards, lane positioning, blind spots, rear cross-traffic, driver attention, and highway operation. Higher trims expand the package with additional camera views and parking-assistance functions.
Multimedia and Connected Features
The standard 12.3-inch connected-car Navigation Cockpit includes navigation, SiriusXM® Satellite Radio, HD Radio™, over-the-air updates, and a Wi-Fi hotspot. Wireless Android Auto™ and Apple CarPlay® provide compatible smartphone integration. Bluetooth® Multiple Device Connection supports connections with more than one device. A wireless phone charger is also standard. Limited and Calligraphy models add a Bose® premium audio system.
Seven USB Type-C ports are distributed throughout the cabin. The first row receives three ports, while the second and third rows each receive two. A rearview monitor with parking guidance is standard across the model range. Bluelink® Connected Car System and Bluelink® Remote Charge Access are also included on every trim. Hyundai Digital Key 2 Premium is available on Limited and Calligraphy models.
The 12.3-inch digital instrument cluster shows the speedometer, power gauge, and battery charge level. It also presents Smart Cruise Control information, transmission status, regenerative braking level, drive mode, ready-to-drive status, and advanced driver-assistance system status. Indicator and warning functions cover the parking brake, low power, open liftgate, anti-lock braking, tire pressure, stability control, power steering, airbags, seatbelts, exterior lighting, and battery charge. A driver-and-all-passenger seatbelt reminder is standard. The Calligraphy adds a 10-inch head-up display.
Driver Assistance and Parking Technology
Forward Collision-Avoidance Assist includes detection functions for vehicles, pedestrians, and cyclists. Its operating functions also address junction turning and crossing, lane-change oncoming traffic, lane-change side detection, and evasive steering support. Lane Keeping Assist and Lane Following Assist are standard on every trim. Driver Attention Warning and Forward Attention Warning provide separate driver-monitoring functions. Highway Driving Assist 2 and Smart Cruise Control 2 are also included throughout the lineup.
Blind-Spot Collision-Avoidance Assist and Rear Cross-Traffic Collision-Avoidance Assist are standard. Forward and reverse Parking Distance Warning also comes on every model. SEL, Limited, and Calligraphy trims add a Surround View Monitor, Blind-Spot View Monitor, side Parking Distance Warning, and reverse Parking Collision-Avoidance Assist. The Calligraphy expands Parking Collision-Avoidance Assist to the forward and side directions. It also adds Remote Smart Parking Assist 2.
Safe Exit Assist supports occupant awareness when exiting the vehicle. A radar-type Advanced Rear Occupant Alert monitors the rear seating area. Intelligent Speed Limit Assist and High Beam Assist are standard across the lineup. Smart Cruise Control with Stop & Go provides speed-control functionality that includes stop-and-go operation. These features work alongside the vehicle’s braking, steering, camera, radar, and warning systems according to their respective functions.
Occupant Protection and Security
Three-point seatbelts are fitted at the outboard seating positions. Adjustable shoulder-belt anchors are included for the front seats. Seatbelt pretensioners and load limiters serve occupants in the first, second, and third rows. Rear child safety locks and a power-window lockout button are standard. These restraint and access-control features support occupants throughout the three-row interior.
Proximity-key entry with push-button start is standard and includes two keys. Power door locks and front auto-down and auto-up windows are also included throughout the range. The Calligraphy adds auto-down and auto-up functionality for the second-row windows. SEL and Limited models use an auto-dimming electrochromic rearview mirror with HomeLink. The Calligraphy replaces that mirror with a Full Display Mirror that also includes HomeLink.
