2026 Hyundai Venue near Loganville, GA
The 2026 Hyundai Venue is engineered as a front-wheel-drive subcompact vehicle that emphasizes efficient packaging, predictable performance, and practical daily usability. The model uses a unibody structure constructed with high-tensile steel, supporting both structural rigidity and controlled weight distribution. Exterior dimensions include a wheelbase of 99.2 inches, an overall length of 159.1 inches, a width of 69.7 inches, and a height of 61.6 inches. Ground clearance is measured at 6.69 inches, and the vehicle maintains a coefficient of drag of 0.34. The approach angle is rated at 21.3 degrees, the departure angle at 32.0 degrees, and the ramp breakover angle at 19.2 degrees.
Engine Configuration and Output Specifications
The 2026 Hyundai Venue is equipped with a Gamma Gen 2 1.6-liter engine with a displacement of 1598 cubic centimeters. This inline four-cylinder engine uses a dual overhead camshaft design with 16 valves and a transverse mounting layout. The powertrain integrates Dual Port Fuel Injection and Mid-Phase Continuously Variable Valve Timing, which adjusts valve timing to improve efficiency and combustion control. The engine uses an aluminum block and cylinder head, supporting weight reduction and thermal efficiency.
Output figures are rated at 121 horsepower at 6,300 revolutions per minute and 113 pound-feet of torque at 4,500 revolutions per minute. The bore and stroke measure 75.6 mm/89 mm. The compression ratio is set at 11.2:1. The system uses an electronic distributorless ignition with stick coils. Electrical support includes a 12-volt starter rated at 0.9 kilowatts, a 13.5-volt alternator rated at 110 amperes, and a 45-ampere-hour battery. The engine operates on unleaded fuel and uses a single exhaust configuration with a catalytic converter system designed to meet LEV3 ULEV70 emission standards.
Transmission System and Drive Layout
All trims of the 2026 Hyundai Venue use an Intelligent Variable Transmission with gate-type operation and SHIFTRONIC® manual control functionality. The transmission includes Hill Start Assist Control, which helps prevent rollback on inclines. The drive configuration is front-wheel drive across the entire model lineup. Gear ratios for the transmission range from 0.385 to 2.680, with an additional ratio range of 2.822:1.822, supported by a defined final drive ratio. An ignition key interlock system is integrated into the transmission design to maintain controlled operation during startup and gear selection.
Steering Precision and Suspension Design
The steering system uses a rack-and-pinion configuration combined with column-mounted motor-driven power steering. The overall steering ratio is 14.4 at 360 degrees, with 2.7 turns from lock to lock. The minimum turning radius is 5.1 meters, and the turning diameter measures 16.6 feet curb to curb.
The front suspension uses a MacPherson® strut configuration with coil springs, paired with a stabilizer bar and twin-tube gas shock absorbers. The rear suspension consists of a coupled torsion beam axle with twin-tube shock absorbers.
Brake System Configuration and Performance Support
The braking system includes ventilated front disc brakes with a diameter of 11.0 inches. Rear braking systems differ by trim level. The SE trim uses rear drum brakes with a diameter of 8.0 inches, while the SEL and SEL with 2-Tone Roof trims use rear disc brakes measuring 10.3 inches. The system incorporates Anti-lock Braking System functionality with Electronic Brake-force Distribution. The brake system operates through four wheels and four channels, supported by a vacuum booster with a diameter of 10.0 inches and a boosting ratio of 10.0:1. A tandem master cylinder with a diameter of 0.87 inches completes the system.
Exterior Equipment and Functional Elements

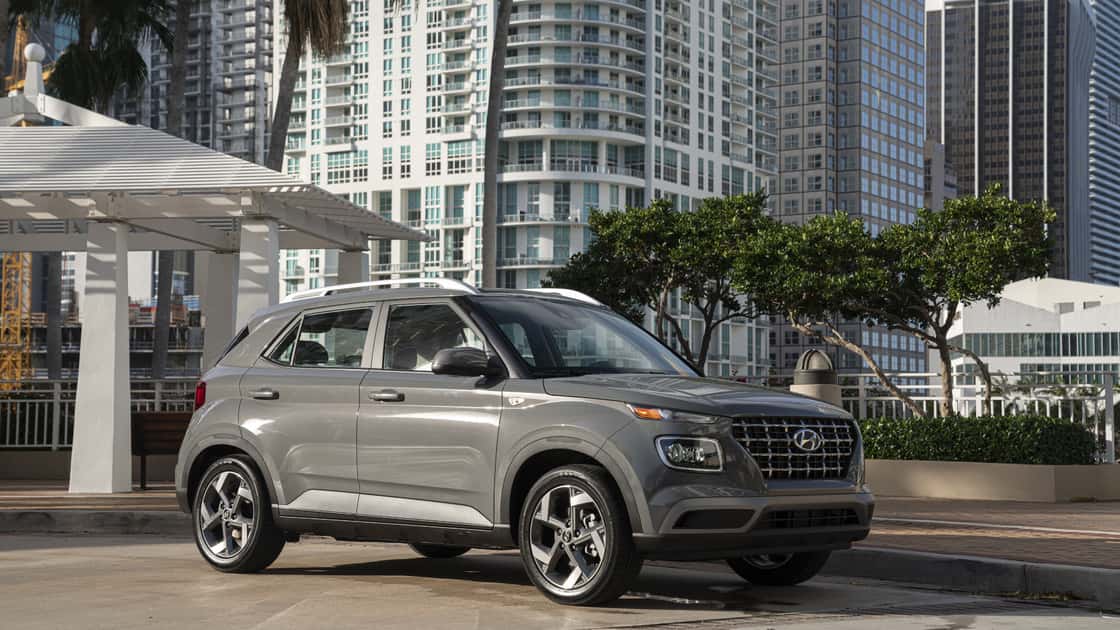

Exterior equipment across all trims includes projector headlights, automatic headlight control, one-touch triple turn signals, lenticular-effect taillights, tinted glass, and front two-speed intermittent wipers. The vehicle includes a body-color bumper and a black or chrome grille, depending on trim level. Window belt moldings and door frames use black trim detailing. Door handles are body-color across all trims.
Wheel configurations vary by trim. The SE trim uses 15-inch alloy wheels paired with 185/65R15 tires. The SEL and SEL with 2-Tone Roof trims use 17-inch alloy wheels paired with 205/55R17 tires. A compact temporary spare tire is included, using a T125/80 D15 configuration with a steel wheel. Heated outside mirrors are available on SEL trims, while dual power-adjustable mirrors are standard with variations in body color or roof color depending on configuration. A power glass tilt-and-slide sunroof is available on the SEL trim with one-touch operation and safety integration.
Interior Layout and Seating Functionality

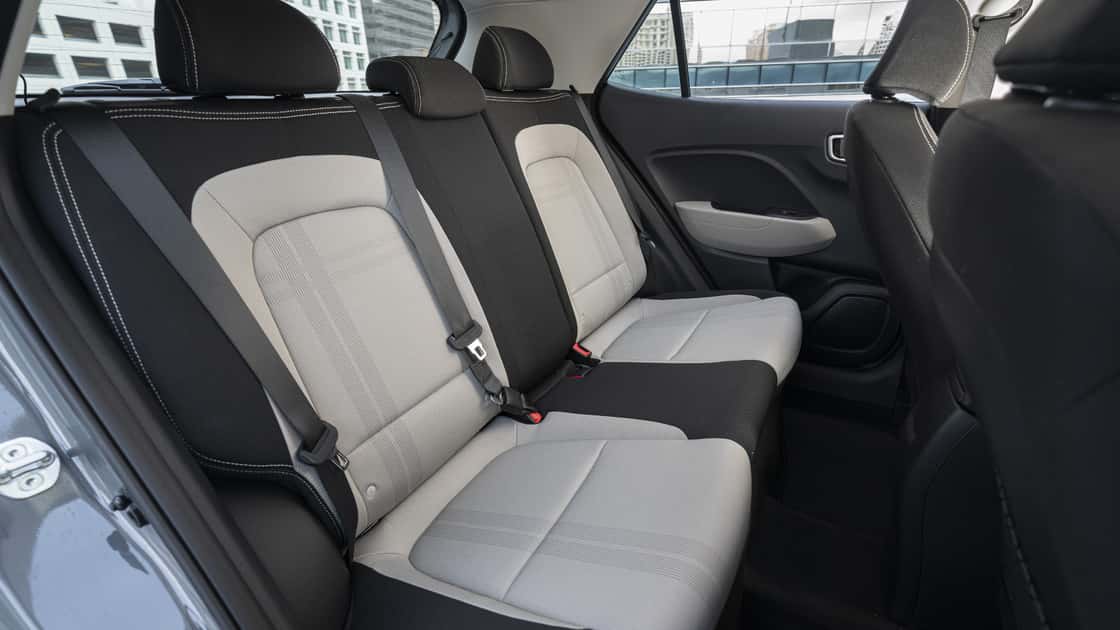

The 2026 Hyundai Venue accommodates five passengers and provides multiple seating configurations. The front seating area includes a six-way adjustable driver seat with height adjustment, sliding and reclining functions, and a driver sliding armrest with integrated storage. The passenger seat includes a seatback pocket for additional storage. Rear seating includes a 60/40 split fold-down seatback, allowing for flexible cargo expansion.
Seating surfaces vary by trim level. The SE trim uses cloth seating, while the SEL trim uses cloth seating with added features such as heated front seats. The SEL with 2-Tone Roof includes a cloth and H-Tex® combination seating surface. Seatbelt systems include three-point belts for all seating positions, with Emergency Locking Retractors for the driver and Convertible Locking Retractors for passengers. Adjustable front seatbelt anchors are included.
Interior space measurements include 39.4 inches of front headroom without a sunroof and 38.4 inches with a sunroof. Rear headroom measures 38.6 inches. Front legroom measures 41.3 inches, while rear legroom measures 34.3 inches. Shoulder room measures 53.9 inches in the front and 53.7 inches in the rear. Hip room measures 52.1 inches in the front and 43.5 inches in the rear.
Cargo Capacity and Storage Measurements
Cargo capacity is measured at 18.7 cubic feet with the rear seats in an upright position. When the rear seats are folded, cargo capacity increases to 31.9 cubic feet. Passenger volume is measured at 91.9 cubic feet, resulting in a combined interior volume of 110.6 cubic feet. Additional storage features include front and rear bottle holders, dual front cupholders located in the center console, a glove compartment, and interior cargo lighting. A 12-volt outlet is mounted in the center stack for accessory power.
Infotainment System and Connectivity Integration

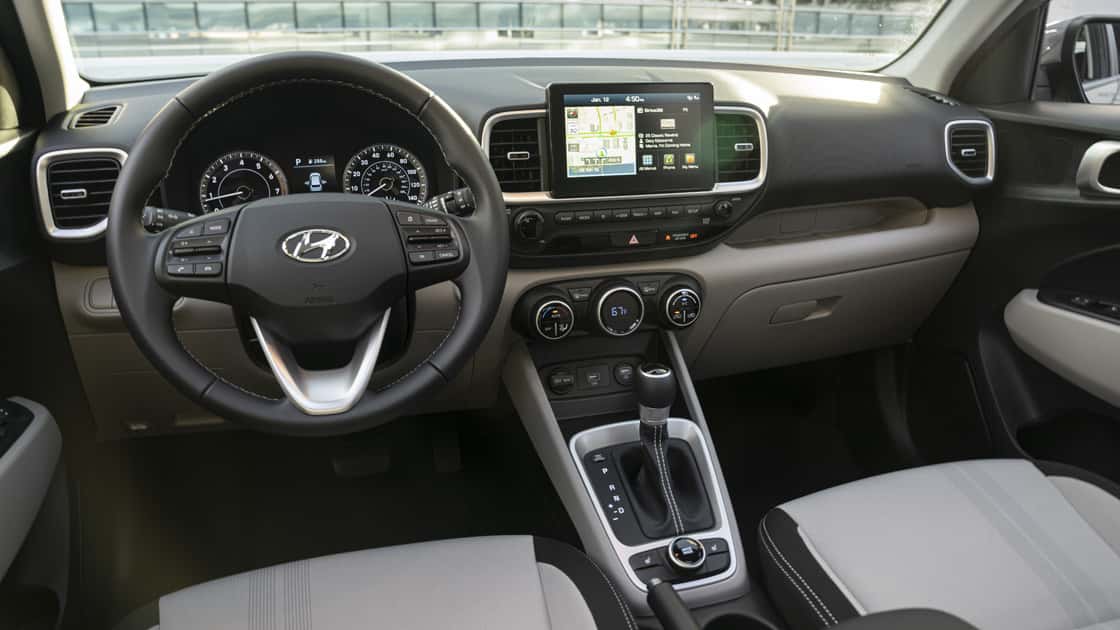

The infotainment system uses an 8-inch touchscreen display that supports AM and FM radio functionality. Wireless Android Auto™ and Apple CarPlay® integration are standard across all trims, allowing smartphone connectivity without cable requirements. The system includes a Bluetooth® hands-free phone interface with voice recognition capability and steering-wheel-mounted audio controls.
The audio system includes six speakers, consisting of two tweeters, two front-door-mounted speakers, and two rear speakers. The system uses a roof-mounted micropole antenna. Charging features include dual USB ports in the front, consisting of one Type-A and one Type-C port. SEL trims include additional second-row USB Type-C charging ports and Qi-format wireless device charging.
Climate Control and Driver Interface Systems
Climate control systems differ by trim. The SE trim includes manual air conditioning and a heater system with a Positive Temperature Coefficient heater. The SEL trim includes automatic temperature control. Both trims include a rear window defroster with a timer and a cabin air filter. An exterior temperature display is integrated into the trip computer system.
Instrumentation includes a speedometer, tachometer, fuel level gauge, water temperature gauge, and various indicator lights. Additional information displays include distance to empty, ambient temperature, odometer readings, and drive mode indicators. Warning systems include oil pressure, battery charge, door status, airbag status, seatbelt alerts, tire pressure monitoring, brake system indicators, and electronic stability control notifications. Adjustable illumination levels allow for customization of the instrument panel brightness.
Convenience Systems and Functional Controls
Convenience systems include power windows for front and rear passengers, with an auto-up function for the driver window on SEL trims. Power door locks and remote keyless entry are standard, while SEL trims include a proximity key with push-button start. Cruise control is standard across all trims. The trip computer provides data such as average fuel consumption, average speed, elapsed time, and instant fuel usage.
Interior controls include tilt and telescoping steering adjustment, with polyurethane or leather-wrapped steering wheels depending on trim. Additional features include assist grips, illuminated vanity mirrors, cargo lighting, map lights, and delay-out interior lighting. A non-locking inside rearview mirror with manual day and night adjustment is also included.
Safety Architecture and Driver Assistance Systems
The safety structure of the 2026 Hyundai Venue includes front and rear crumple zones, body-side reinforcements, and 5-mile-per-hour bumpers. The airbag system includes advanced front airbags, side-impact airbags, and side curtain airbags covering front and rear occupants. An Occupant Classification System is used for the front passenger seat.
Active safety systems include Anti-lock Braking System, Electronic Brake-force Distribution, Electronic Stability Control with Traction Control, Vehicle Stability Management, Brake Assist, and Tire Pressure Monitoring System. Advanced driver assistance features include Forward Collision-Avoidance Assist with pedestrian detection, Lane Keeping Assist, Driver Attention Warning, High Beam Assist, and Rear Occupant Alert. SEL trims include Blind-Spot Collision Warning and Rear Cross-Traffic Collision Warning.
