2026 Hyundai Tucson Hybrid near Loganville, GA
The 2026 Hyundai Tucson Hybrid uses a Smartstream® 1.6L Turbo-GDI DOHC 16-valve inline 4-cylinder engine paired with a hybrid electric motor system. The gasoline engine has a displacement of 1,598 cc and incorporates Continuously Variable Valve Duration technology to improve combustion efficiency and torque delivery across a wide operating range. The gas engine independently produces 178 horsepower at 5,500 rpm and 195 lb-ft of torque between 1,500 and 4,500 rpm.
The hybrid system integrates a permanent magnet synchronous motor that generates 47.7 kW, which equals 64 horsepower, and delivers 195 lb-ft of torque at 1,700 rpm. When combined with the gasoline engine, total system output reaches 231 horsepower and 271 lb-ft of torque.
The hybrid configuration uses a lithium-ion battery system with a maximum voltage of 270 volts and a capacity of 1.49 kWh. Battery output is rated at 64 kW. The system operates without an external charging port and relies on internal energy management strategies, including regenerative operation and engine-assisted charging, to maintain battery levels.
Transmission System and All-Wheel Drive Integration
The 2026 Hyundai Tucson Hybrid uses a 6-speed automatic transmission with a torque converter. This transmission supports smooth gear transitions while maintaining compatibility with the hybrid system’s torque delivery characteristics. Steering wheel-mounted paddle shifters are included, allowing manual control over gear selection when required. The model also incorporates shift-by-wire technology, replacing a traditional mechanical gear selector with an electronically controlled interface.
All 2026 Hyundai Tucson Hybrid models are equipped with HTRAC all-wheel drive as standard equipment. This system distributes torque between the front and rear axles based on traction requirements and driving conditions. The drivetrain includes a center-console-mounted drive mode selector, which allows the driver to adjust vehicle behavior for different road surfaces and operating scenarios.
The final gear ratio for the hybrid system is approximately 3.320. The drivetrain configuration supports controlled acceleration, consistent traction, and stable handling under varying conditions.
Structural Engineering and Suspension Systems
The 2026 Hyundai Tucson Hybrid is built on a unibody platform constructed with advanced high-strength steel and high-tensile steel. This structural design improves rigidity and supports overall durability while maintaining weight efficiency. The body structure also contributes to impact absorption and occupant protection.
The front suspension system uses a MacPherson® strut design with coil springs, a stabilizer bar, and gas-pressurized shock absorbers. The rear suspension uses a multi-link configuration, also supported by gas-pressurized shock absorbers and a stabilizer bar. This combination provides balanced ride characteristics and maintains consistent tire contact with the road surface.
The steering system uses motor-driven power steering with a rack-and-pinion layout. The steering ratio is 13.7:1, and the system requires 2.41 turns from lock to lock. The turning diameter measures 38.6 feet, supporting maneuverability in urban and confined driving environments.
Brake System Configuration and Control Features
The braking system on the 2026 Hyundai Tucson Hybrid uses four-wheel disc brakes. The front brakes are ventilated discs measuring 12.8 x 1.2 inches in thickness. The rear brakes are solid discs measuring 12.0 x 0.4 inches in thickness.
The braking system includes an Anti-lock Braking System with Electronic Brake-force Distribution. Additional control systems include Brake Assist, Hillstart Assist Control, and Downhill Brake Control. An electronic parking brake is included, along with Automatic Vehicle Hold functionality. These systems operate together to support braking performance and vehicle stability during various driving conditions.
Exterior Dimensions, Body Geometry, and Aerodynamics
The 2026 Hyundai Tucson Hybrid has a wheelbase of 108.5 inches. Overall length measures 182.7 inches, and overall width is 73.4 inches. Height with roof rails is approximately 66.3 inches for all-wheel-drive configurations. The front and rear overhangs measure 35.6 inches and 38.6 inches, respectively.
Ground clearance for all-wheel drive models is listed at 8.3 inches. The vehicle has a coefficient of drag of 0.33, which contributes to aerodynamic efficiency. Roof rails support a maximum load capacity of 220 pounds.
Wheel and Tire Specifications with Lighting Systems
Wheel and tire configurations vary by trim level within the hybrid lineup. Base hybrid trims use 17-inch alloy wheels paired with 235/65R17 tires. Mid-level trims use 18-inch alloy wheels with 235/60R18 tires. Higher trims use 19-inch alloy wheels with 235/55R19 tires.
Lighting systems include Bi-LED headlights for both high and low beam functions. LED daytime running lights and LED front turn signals are standard across trims. Automatic headlights and High Beam Assist are included. A roof-mounted center high-mount stop lamp is integrated into the rear spoiler structure.
Higher trims include projector-type Bi-LED headlights, premium daytime running lights, LED taillights, and LED license plate lighting.
Interior Dimensions, Seating Systems, and Cargo Capacity

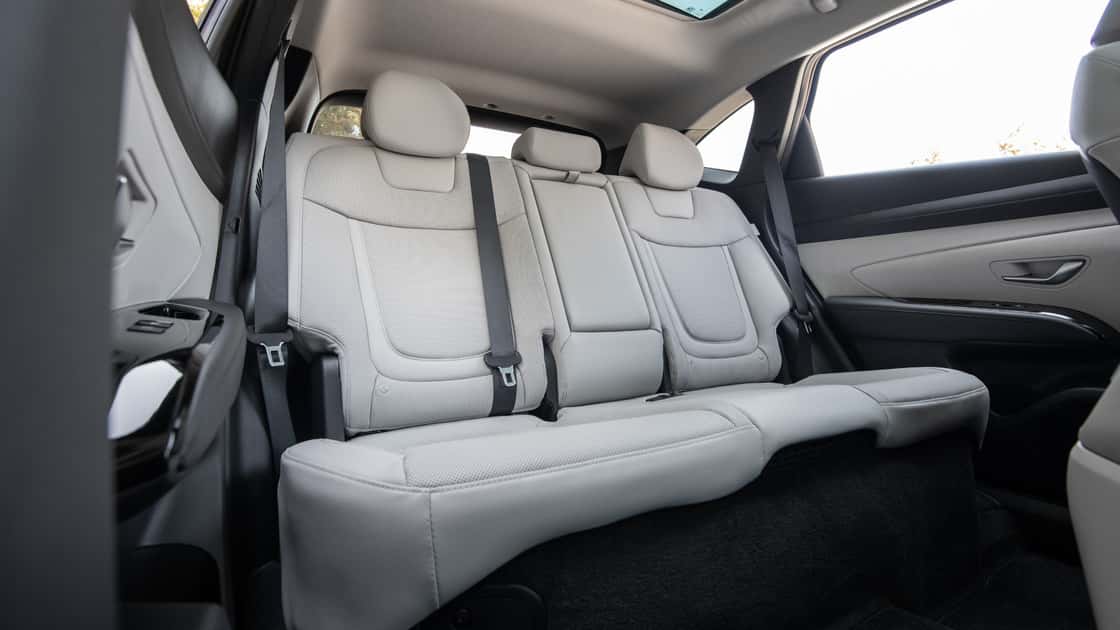

The 2026 Hyundai Tucson Hybrid is configured to seat five passengers. Interior dimensions include 40.1 inches of front headroom and 39.5 inches of rear headroom without a panoramic sunroof. Front legroom measures 41.4 inches, while rear legroom measures 41.3 inches. Shoulder room measures 57.6 inches in the front and 56.0 inches in the rear. Hip room measures 54.5 inches in the front and 53.9 inches in the rear.
The rear seat uses a 60/40 split-folding design and includes reclining functionality. Adjustable rear head restraints are standard. Remote release levers located in the cargo area allow the rear seats to fold down without manual adjustment from the second row.
Cargo capacity measures 38.7 cubic feet with rear seats in the upright position. Maximum cargo volume reaches approximately 80.0 cubic feet when the rear seats are folded down. A dual-level cargo floor is included, allowing adjustment of cargo height for different loading needs.
Infotainment Systems and Digital Interface Technology

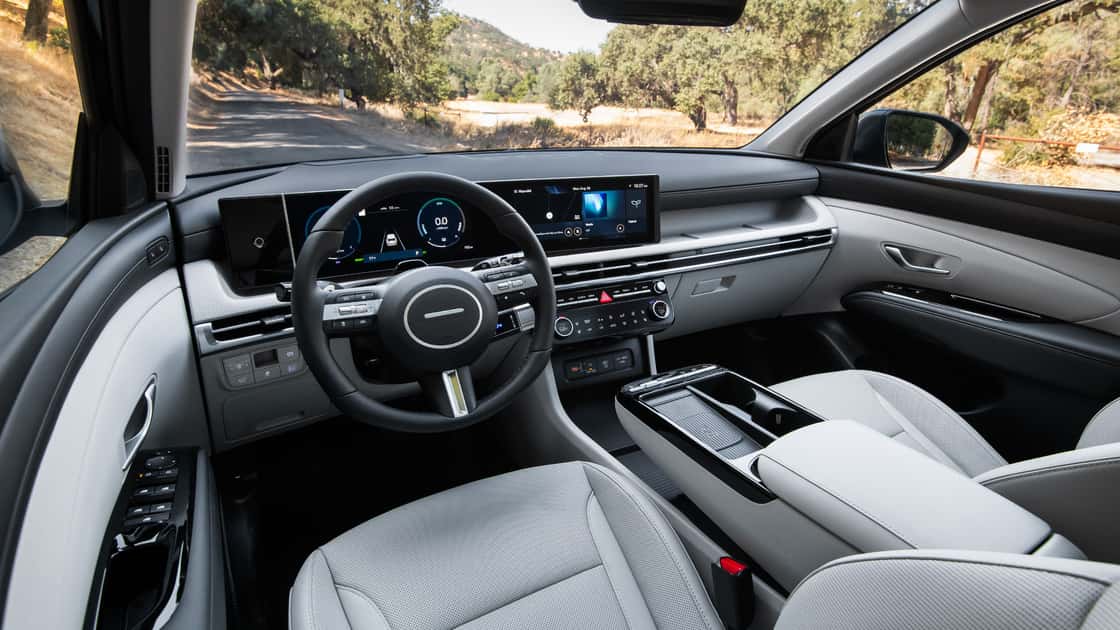

The 2026 Hyundai Tucson Hybrid includes a 12.3-inch color touchscreen infotainment system. The system supports AM/FM radio, HD Radio™, and SiriusXM® satellite radio. Wireless Apple CarPlay® and Android Auto™ compatibility are standard features, allowing smartphone integration without a physical connection.
The infotainment system includes over-the-air update capability for software and controller functions. Dual USB Type-C ports are located in the front row, with additional dual USB charging ports in the second row. A rearview camera is also included as standard equipment.
Higher trims include an upgraded 12.3-inch touchscreen with onboard navigation. These trims also include a Bose® premium audio system with an 8-channel digital amplifier, Digital Signal Processing, Dynamic Speed Compensation, and eight speakers positioned throughout the cabin.
Climate Control, Instrumentation, and Cabin Controls
The hybrid model includes dual automatic temperature control with an integrated Auto Defogger system. The climate control interface uses capacitive-touch controls with physical knobs for temperature adjustment. Rear passengers have access to dedicated air vents mounted on the rear of the center console.
Instrumentation includes either a 4.2-inch multi-information display or a 12.3-inch digital instrument cluster, depending on trim. The display provides information such as speed, fuel level, engine temperature, trip data, and system alerts.
Steering wheel controls include audio adjustment, Bluetooth® communication functions, and cruise control operation. The steering column is tilt and telescoping, allowing adjustment for driver positioning.
Convenience Systems and Connected Technology
The 2026 Hyundai Tucson Hybrid includes Smart Cruise Control with Stop and Go functionality. Additional convenience features include proximity key entry, push-button start, and remote keyless entry with alarm and panic functions. The vehicle also includes a connected car system with integrated connectivity features.
Higher trims include additional systems such as Remote Smart Parking Assist, a wireless device charging pad rated at 15W, and Hyundai Digital Key 2 Premium functionality using NFC, Bluetooth® Low Energy, and Ultra-Wideband technology. Rain-sensing windshield wipers and an auto-dimming rearview mirror are also available.
Storage features include a front center console storage compartment, cupholders, a glove compartment with damping, and cargo tie-down anchors located in the rear storage area.
Comprehensive Safety Systems and Driver Assistance Technologies
The 2026 Hyundai Tucson Hybrid includes a full set of passive and active safety systems. Passive safety equipment includes advanced front airbags, side-impact airbags, curtain airbags with rollover sensors, and rear side airbags. Seatbelt systems include pretensioners and load limiters for front and rear outboard seats. LATCH anchors and child safety locks are also included.
Active safety systems include Forward Collision-Avoidance Assist with pedestrian, cyclist, and junction turning detection. Blind-Spot Collision Warning and Rear Cross-Traffic Collision-Avoidance Assist are standard. Lane Keeping Assist and Lane Following Assist help maintain lane position.
Additional systems include Driver Attention Warning, Intelligent Speed Limit Assist, and Safe Exit Warning. Steering wheel haptic feedback is used to communicate lane and blind-spot alerts to the driver.
Higher trims include advanced systems such as Surround View Monitor, Blind-Spot View Monitor, Parking Distance Warning, Parking Collision-Avoidance Assist in reverse, and Navigation-based Smart Cruise Control with curve control. Highway Driving Assist is also included on upper trims.
Schedule a Test Ride at ALM Hyundai of Athens
ALM Hyundai of Athens near Loganville, GA, provides access to the 2026 Hyundai Tucson Hybrid for in-person evaluation and test drives. Scheduling a test drive allows direct assessment of the hybrid powertrain, including combined system output, transmission response, and all-wheel drive operation. Drivers can evaluate the integration of safety systems, infotainment controls, and digital displays under typical driving conditions. Cabin dimensions, seating configuration, and cargo capacity can be reviewed in detail during a visit. Contact our dealership to arrange a test drive appointment and examine the technical features of the 2026 Hyundai Tucson Hybrid in a controlled environment.
