2026 Hyundai Santa Fe Hybrid near Loganville, GA
The 2026 Hyundai Santa Fe Hybrid is engineered as a three-row midsize SUV that integrates a turbocharged gasoline engine with an electric motor and battery system to deliver balanced output and efficiency. It utilizes a Smartstream® 1.6-liter turbocharged gasoline direct injection inline four-cylinder engine paired with a permanent magnet synchronous electric motor. The combined system produces 231 horsepower and 271 lb-ft of torque, supporting consistent acceleration and controlled power delivery across varying driving conditions. The hybrid system is supported by a 270-volt lithium-ion battery with a capacity of 1.49 kWh, designed to optimize energy storage and regeneration during operation.
The hybrid configuration prioritizes efficiency while maintaining usable performance output. The gasoline engine generates 178 horsepower at 5,500 rpm and 195 lb-ft of torque across a wide band between 1,500 and 4,500 rpm. The electric motor contributes additional torque, allowing improved responsiveness during low-speed acceleration and transitional driving phases. This integration ensures smooth operation without abrupt shifts in power delivery.
Hybrid Powertrain Configuration and Transmission System
The 2026 Hyundai Santa Fe Hybrid is equipped with a 6-speed automatic transmission that has been calibrated specifically for hybrid integration. This transmission supports efficient power transfer between the gasoline engine and electric motor while maintaining consistent gear engagement. The system includes SHIFTRONIC® manual shift paddle shifters, allowing manual control over gear selection when required.
Shift-by-wire technology is implemented to replace traditional mechanical linkages, improving responsiveness and reducing system complexity. The drivetrain is available in both front-wheel drive and HTRAC all-wheel-drive configurations. The HTRAC system distributes torque dynamically between the front and rear axles based on selected drive modes and traction conditions.
Drive mode selection includes Comfort, Eco, Sport, and Smart modes. These modes adjust throttle response, transmission behavior, and torque distribution. Additional terrain modes such as Snow provide altered torque split ranges to improve traction. The all-wheel-drive system is capable of varying torque distribution between 100:0 and 50:50 depending on driving conditions, while specific modes adjust ratios to enhance stability on low-friction surfaces.
Chassis Structure, Suspension, and Steering Calibration
The vehicle is constructed using a unibody platform composed primarily of high-strength steel. This structural design increases rigidity while maintaining controlled weight distribution, contributing to improved handling and durability. The suspension system uses a MacPherson® strut configuration at the front combined with coil springs and a stabilizer bar. The rear suspension is a multi-link independent setup with separated springs and shock absorbers.
Gas-pressurized shock absorbers with advanced valving are used on both front and rear systems to improve damping control and ride stability. This configuration supports consistent handling across uneven road surfaces while maintaining passenger comfort. The steering system is a column-mounted motor-driven power steering unit with rack-and-pinion geometry. It operates with an overall ratio of 13.7 and provides a turning diameter of 37.9 feet, enabling controlled maneuverability in confined spaces.
Braking System and Control Features
The braking system consists of ventilated front disc brakes and solid rear disc brakes, both measuring 12.8 inches in diameter. The system includes anti-lock braking functionality with electronic brake-force distribution, ensuring balanced braking performance across all wheels. Brake assist is integrated to provide additional stopping force during emergency braking situations.
Additional control systems include Hillstart Assist Control, which prevents rollback during incline starts, and Downhill Brake Control, which maintains controlled descent speed on steep declines. An electric parking brake with auto-hold functionality is included, allowing the vehicle to remain stationary without continuous brake pedal input. Trailer sway control is also integrated to improve stability when towing.
Exterior Engineering and Functional Design Elements
The exterior design integrates functional components that enhance visibility, durability, and usability. LED projector headlights with LED accents are standard, along with LED daytime running lights and LED taillights. Automatic headlight operation and high-beam assist are included to improve visibility during low-light conditions.
Wheel configurations vary depending on trim, with options including 18-inch and 20-inch alloy wheels. Tire specifications are matched to the selected wheel size to support traction and stability. The vehicle includes heated side mirrors with integrated LED turn signal indicators. Select trims feature power-folding mirrors for improved convenience.
The 2026 Hyundai Santa Fe Hybrid includes a hands-free smart liftgate with adjustable height settings, allowing easier cargo access. Roof rails are standard, with optional cross rails available for additional cargo-carrying capability. The exterior glass includes acoustic laminated windshield and front side glass, which reduces noise intrusion into the cabin. Privacy glass is applied to rear windows to enhance passenger comfort.
Rain-sensing windshield wipers are available on higher trims, adjusting wiper speed automatically based on detected moisture. Sunroof configurations include both conventional and dual-pane options, depending on trim selection.
Interior Layout, Seating Systems, and Material Options
The interior is configured to accommodate up to seven passengers, with optional six-passenger configurations that include second-row captain’s chairs. Seating materials vary by trim level, including stain-resistant cloth, H-Tex® leatherette, leather-trimmed surfaces, and Nappa leather in higher trims.
Front seating includes manual or power-adjustable configurations, with available features such as lumbar support, heating, and ventilation. Higher trims include a driver memory system and a relaxation seat function with one-touch adjustment. The second-row seating includes split-folding functionality with adjustable head restraints, while the third row offers a 50:50 folding configuration.
Cargo capacity is designed to support flexible storage needs. The vehicle provides up to 79.6 cubic feet of cargo space behind the front seats. Additional storage features include an underfloor storage tray and remote seat-folding controls for the second row. This configuration allows quick adjustment between passenger and cargo space.
Infotainment System and Digital Integration

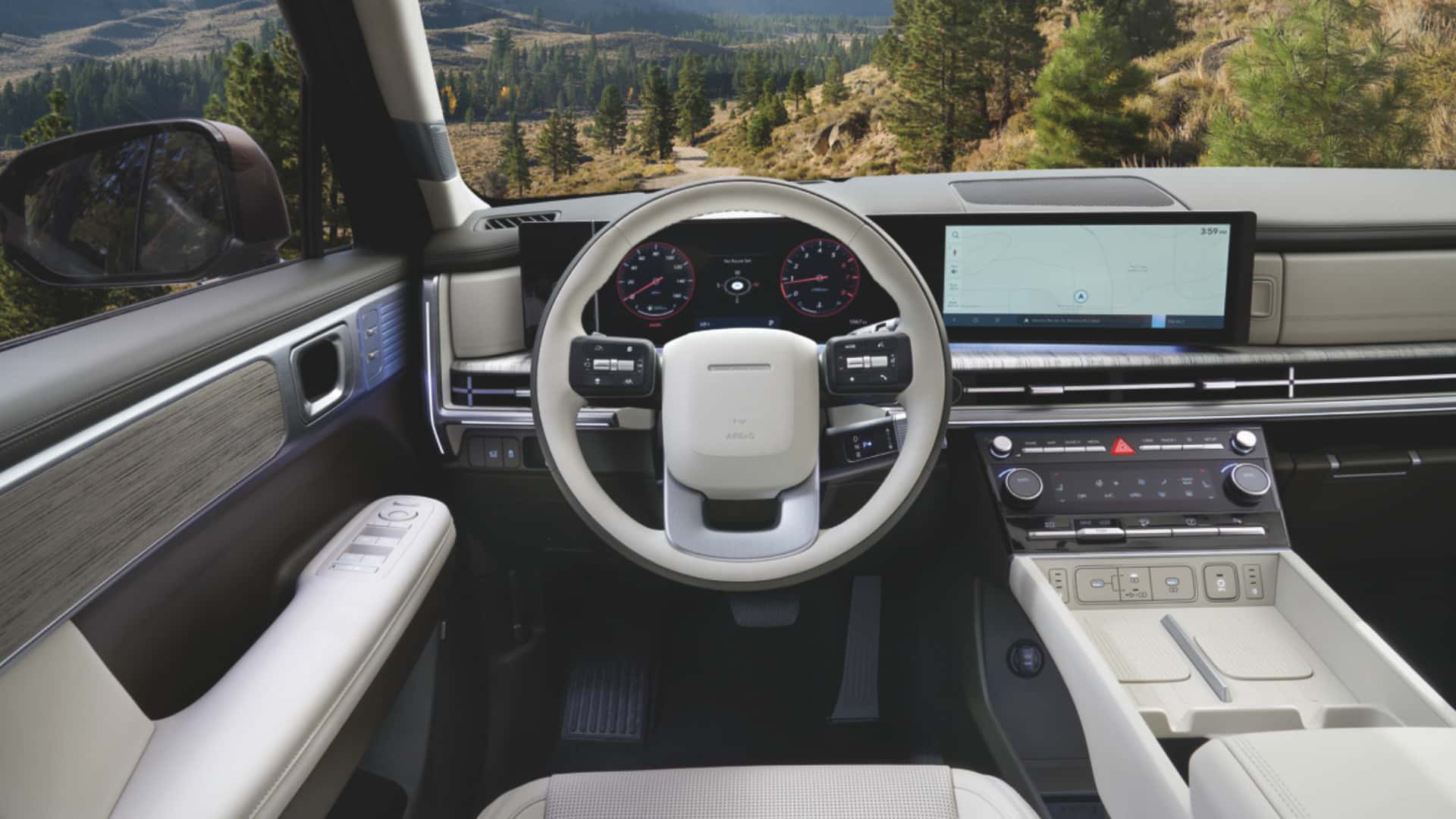

The 2026 Hyundai Santa Fe Hybrid includes a 12.3-inch display audio system as standard, with an available 12.3-inch touchscreen that includes navigation and traffic data integration. The system supports wireless Apple CarPlay® and Android Auto™ connectivity, allowing smartphone integration without physical connections.
Audio output is supported by standard speaker systems, with an available Bose® premium audio system featuring 12 speakers on higher trims. The infotainment system includes dynamic voice recognition, enabling voice-based control of navigation and media functions.
Wireless device charging is available, with dual charging capability on select trims. Multiple USB charging ports are distributed across all three rows to support passenger device usage. Additional features include a head-up display, which projects key driving information onto the windshield, and a surround view monitor that provides a multi-angle camera perspective for parking assistance.
Hyundai Digital Key 2 Premium is included on select trims, allowing vehicle access and operation using compatible mobile devices. Over-the-air update capability enables system updates without requiring dealership visits.
Driver Assistance Technologies and Safety Systems
The 2026 Hyundai Santa Fe Hybrid incorporates a comprehensive set of safety and driver assistance systems. The airbag system includes front, side, curtain, and driver knee airbags to provide occupant protection across all seating positions. Seatbelt systems include pretensioners and load limiters for front occupants.
Active safety features include forward collision-avoidance assist with detection for pedestrians, cyclists, and junction turning scenarios. Lane keeping assist and lane following assist provide steering support to maintain lane position. Blind-spot collision-avoidance warning and assist systems monitor adjacent lanes and provide corrective input if necessary.
Rear cross-traffic collision-avoidance assist detects approaching vehicles when reversing, while safe exit assist prevents doors from opening when traffic is detected. Driver attention warning and forward attention warning systems monitor driver behavior and provide alerts when signs of distraction are detected.
Higher trims include advanced features such as highway driving assist and remote smart parking assist. These systems provide partial automation for highway driving and parking maneuvers, improving convenience and safety in controlled conditions.
Dimensions, Capacity, and Performance Specifications
The 2026 Hyundai Santa Fe Hybrid features a wheelbase of 110.8 inches, an overall length of 190.2 inches, and a width of 74.8 inches. The overall height measures 67.7 inches with roof rails installed. Ground clearance is approximately 7.0 inches, supporting moderate off-road capability.
Interior dimensions provide substantial space across all rows. Front legroom measures 44.4 inches, while second-row legroom measures 41.5 inches in hybrid configurations. Third-row legroom is measured at 30.0 inches. Shoulder and hip room measurements are distributed to maintain passenger comfort across all seating positions.
The vehicle has a fuel tank capacity of 17.7 gallons. Towing capacity for the hybrid model is rated at up to 2,000 pounds with trailer brakes. The cargo area provides 40.5 cubic feet of space behind the second row and 14.6 cubic feet behind the third row.
Schedule a Test Ride Today
We invite you to examine the engineering and system integration of the 2026 Hyundai Santa Fe Hybrid in detail at ALM Hyundai of Athens near Loganville, GA. Our team can demonstrate the hybrid powertrain operation, infotainment interface, and driver assistance technologies during a scheduled visit. A test drive allows direct evaluation of transmission behavior, steering response, and ride quality under different driving conditions. You can also review interior configurations, cargo flexibility, and connectivity features in person. Schedule a visit to explore how each system operates together within the 2026 Hyundai Santa Fe Hybrid platform.
