2026 Hyundai Santa Cruz near Lexington, GA
The 2026 Hyundai Santa Cruz combines compact pickup capability with the driving characteristics of a midsize crossover platform. Hyundai developed the 2026 Hyundai Santa Cruz with a unibody structure, advanced driver-assistance systems, available turbocharged performance, and integrated cargo management solutions. The model supports both daily commuting and utility-focused applications through a combination of powertrain flexibility, passenger comfort, and open-bed functionality.
The 2026 Hyundai Santa Cruz lineup includes multiple trim levels with standard and available equipment that expands capability, convenience, and technology integration. Every model uses a 2.5-liter four-cylinder engine platform paired with an 8-speed automatic transmission. Available HTRAC all-wheel drive adds traction management for changing road conditions and light off-pavement operations.
Smartstream® Engine Options and Turbocharged Performance
The 2026 Santa Cruz offers two Smartstream® engine configurations. The standard engine is a 2.5-liter GDI and MPI DOHC 16-valve inline four-cylinder engine with a displacement of 2,497 cc. This engine produces 191 horsepower at 6,100 rpm and 181 lb-ft of torque at 4,000 rpm. Hyundai equips the engine with Continuously Variable Valve Timing and a variable intake system. The engine uses an aluminum block and aluminum cylinder head to reduce weight while maintaining structural rigidity.
The available turbocharged powertrain is a 2.5-liter Turbo GDI and MPI DOHC 16-valve inline four-cylinder engine with the same 2,497 cc displacement. This engine produces 281 horsepower at 5,800 rpm and 311 lb-ft of torque between 1,700 and 4,000 rpm. The turbocharged intake system increases low-end torque output and improves acceleration under load conditions. The turbocharged engine also uses Continuously Variable Valve Timing and aluminum engine construction.
Both engines operate on regular unleaded fuel and use distributorless ignition systems. Hyundai equips each engine with a 12-volt 1.2-kW starter and a 13.5-volt 150-amp alternator management system. The compression ratio differs between the engines, with the naturally aspirated engine using a 13.0 ratio and the turbocharged engine using a 10.5 ratio. Both configurations meet ULEV emissions standards.
Eight-Speed Automatic Transmission and HTRAC AWD Capability
The 2026 Hyundai Santa Cruz uses an 8-speed automatic transmission with a torque converter. Front-wheel drive comes standard on selected trims with the naturally aspirated engine, while HTRAC all-wheel drive is available. The turbocharged 2.5-liter engine uses HTRAC all-wheel drive as standard equipment.
The HTRAC system functions as an active on-demand all-wheel drive setup that adjusts torque distribution based on traction conditions. Hyundai also includes a center-console-mounted drive mode selector on all trims. XRT models add Terrain Mode Select, providing additional control calibration for surfaces requiring improved traction management.
The naturally aspirated engine uses a 4.081 final gear ratio, while turbocharged AWD models use a 3.51 final gear ratio. Gear spacing supports controlled acceleration and highway efficiency through all eight forward gears. The reverse gear ratio differs between the engine configurations to support load handling and low-speed maneuvering.
Suspension, Steering, and Brake System Calibration
The 2026 Hyundai Santa Cruz uses a MacPherson® strut front suspension with coil springs and gas-pressurized shock absorbers. The rear suspension uses a multi-link configuration with self-leveling gas-pressurized shock absorbers. This suspension layout improves ride stability during cargo loading and passenger transport.
The steering system uses column-mounted Motor Driven Power Steering with rack-and-pinion operation. The steering ratio measures 14.2 with 2.62 turns lock-to-lock. The turning diameter measures 39.6 feet curb-to-curb, supporting maneuverability in urban and confined driving environments.
Hyundai equips all trims with 12.8-inch ventilated front disc brakes and 12.8-inch solid rear disc brakes. The braking system includes Anti-lock Braking System with Electronic Brake-force distribution using four channels and four sensors. Brake Assist, Hill Start Assist Control, and Downhill Brake Control come standard across the lineup. Electronic Parking Brake with Automatic Vehicle Hold also comes standard.
Electronic Stability Control works with the Traction Control System and Vehicle Stability Management to improve directional stability during emergency maneuvers and reduced-traction conditions. A tire pressure monitoring system with individual tire indicators is also standard.
Unibody Construction and Exterior Dimensions
The 2026 Hyundai Santa Cruz uses a unibody monocoque structure constructed primarily from Advanced High Strength Steel and high-tensile steel materials. This structural design supports chassis rigidity while maintaining lower overall vehicle weight than conventional body-on-frame midsize trucks.
The wheelbase measures 118.3 inches, while the overall length measures 195.7 inches. XRT models measure 195.9 inches in total length. Overall width measures 75.0 inches. Vehicle height measures 66.7 inches with roof rails, while XRT models measure 66.9 inches tall.
Ground clearance measures 8.6 inches. The 2026 Hyundai Santa Cruz provides an approach angle of 16.9 degrees on standard trims and 19.9 degrees on XRT models. The departure angle measures 23.2 degrees, while the breakover angle measures 18.6 degrees. The coefficient of drag measures 0.36.
Curb weight ranges from 3,779 pounds in front-wheel drive SE trim to 4,191 pounds in AWD Limited trim. The maximum vehicle load limit measures 1,411 pounds. Maximum trailer weight reaches 3,500 pounds when equipped with trailer brakes.
Cargo Bed Engineering and Integrated Utility Systems
The 2026 Hyundai Santa Cruz uses a composite cargo bed with multiple integrated storage and utility systems. Bed length measures 48.4 inches at the upper section, 52.1 inches at the lower section, and 74.8 inches with the tailgate open. The maximum bed width measures 53.9 inches, while the width between the wheelhouses measures 42.7 inches. Bed depth measures 19.2 inches.
All trims include a lockable under-bed storage compartment, sidewall bed storage compartments, heavy-duty cargo D-rings, and a multi-functional assisted-open tailgate. Integrated rear bumper side steps improve bed access during cargo loading.
The SEL Activity, XRT, and Limited trims add a factory-installed integrated tonneau cover with two built-in T-slot accessory tracks. These trims also include a dual C-channel adjustable utility track rail and cleat system and a 115-volt power outlet integrated into the sidewall storage area.
Exterior Lighting and Functional Design Components
Every 2026 Hyundai Santa Cruz trim includes Bi-LED projector-type headlights with integrated high and low beams. LED daytime running lights, LED taillights, automatic headlights, and High Beam Assist come standard. Hyundai also equips all trims with a roof-mounted Center High-Mount Stop Lamp and a roof-mounted LED cargo light.
SEL Activity, XRT, and Limited trims include dual LED bed lighting units for improved nighttime cargo visibility. Exterior mirrors include Blind-Spot Collision and Rear Cross-Traffic Collision-Avoidance indicators across all trims. Heated side mirrors and integrated turn signal indicators come standard on SEL and higher trims.
The 2026 Hyundai Santa Cruz also includes solar glass, privacy rear glass, and an acoustic laminated windshield. SEL Activity, XRT, and Limited trims add a rear sliding glass window with defroster functionality.
XRT models use matte black exterior mirror housings and matte black door handles. The Limited trim adds dark chrome grille accents and a dark chrome tailgate handle. Roof side rails and a gloss black shark-fin antenna also come standard.
Interior Measurements and Seating Configuration

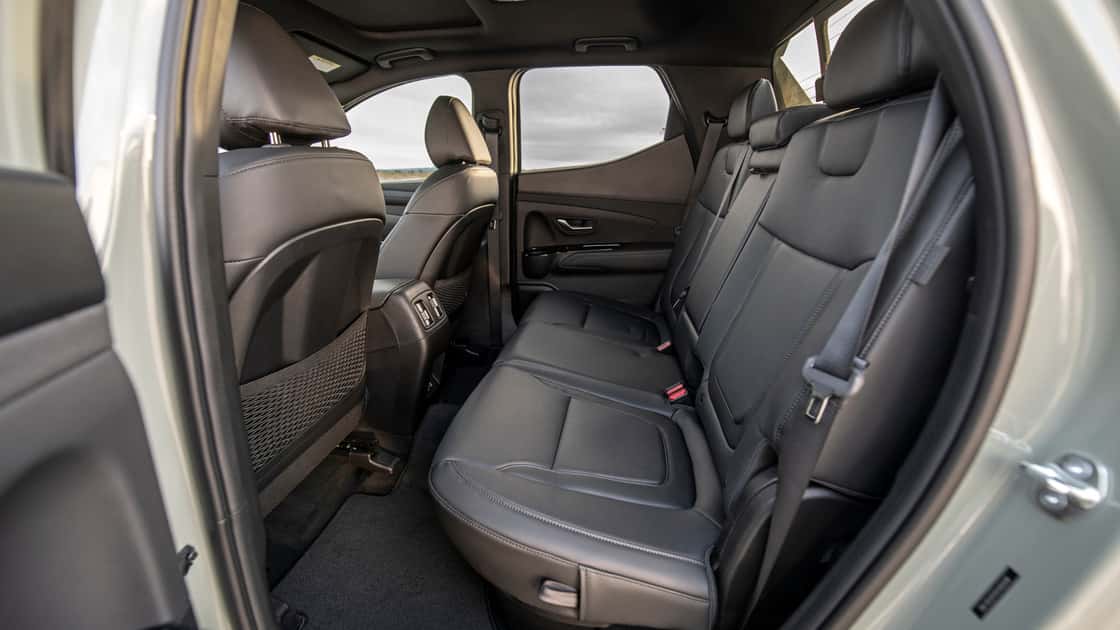

The 2026 Hyundai Santa Cruz seats five passengers and provides 101.8 cubic feet of passenger interior volume. Front headroom measures 40.2 inches without a sunroof and 38.2 inches with a sunroof installed. Rear headroom measures 39.6 inches.
The front legroom measures 41.4 inches, while rear legroom measures 36.5 inches. Front shoulder room measures 57.7 inches, and rear shoulder room measures 56.1 inches. Front hip room measures 54.5 inches, while rear hip room measures 53.5 inches.
SE trims use stain-resistant and odor-resistant cloth-trimmed seating surfaces. The SEL, SEL Activity, and XRT trims use H-Tex® leatherette seating surfaces. Limited trims use leather-trimmed seating surfaces.
SE models include a 6-way adjustable driver seat. SEL and higher trims add an 8-way power driver seat with power lumbar support. Heated front seats come standard beginning with SEL trim. The Limited trim adds ventilated front seats and a 6-way power passenger seat.
All trims include 60/40 split tip-up rear seat cushions to improve interior cargo flexibility.
Digital Displays, Infotainment, and Connected Features

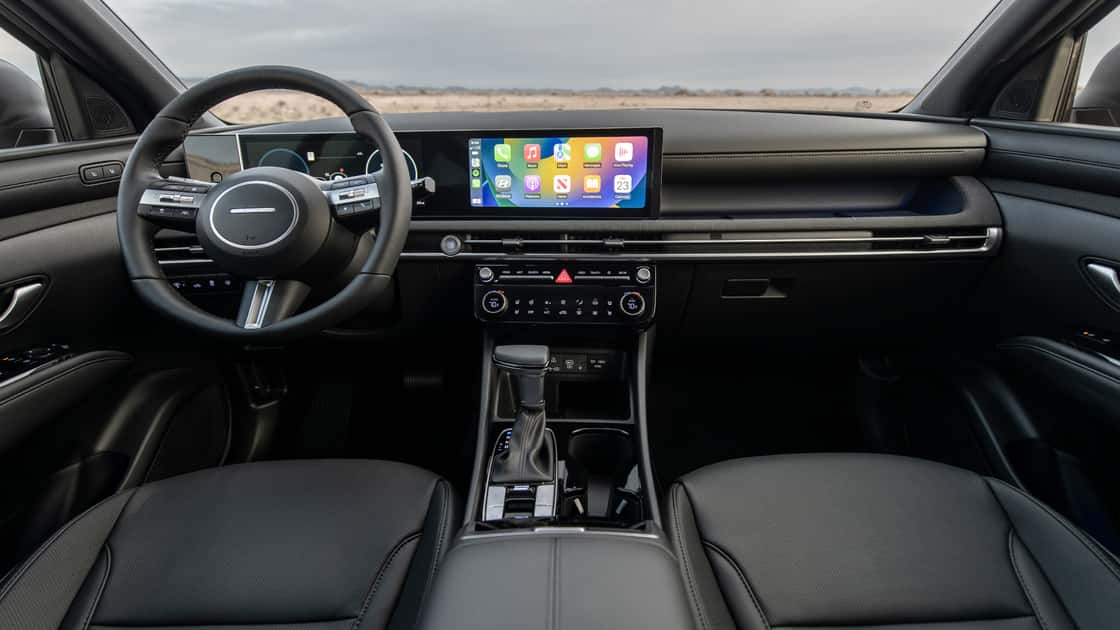

The SE, SEL, and SEL Activity trims include a 12.3-inch touchscreen display with six speakers. XRT and Limited trims add a 12.3-inch Audio-Video-Navigation touchscreen system with onboard navigation functionality.
Wireless Apple CarPlay® and Android Auto™ compatibility come standard across the lineup. Hyundai also includes AM/FM/HD Radio™, SiriusXM® capability, Bluelink®+ connected services, HD Radio™ technology, and front and rear USB Type-C charging ports.
XRT and Limited trims add Dynamic Voice Recognition functionality. Limited trims also include a Bose® Premium Audio System. Rearview camera functionality is standard across all trims.
SE and SEL trims use a 4.2-inch multi-information display within the instrument cluster. SEL Activity, XRT, and Limited trims upgrade to a 12.3-inch fully digital instrument cluster.
Over-the-air update capability applies to ECU and multimedia systems across the lineup. Navigation-equipped trims also receive map-update functionality.
Climate Controls and Interior Convenience Technology
SE trims use manual air conditioning controls. SEL and higher trims include dual automatic temperature control with Auto Defogger and capacitive-touch HVAC controls. Rear seat heater ducts and cabin air filtration systems come standard on all trims.
The SEL Activity, XRT, and Limited trim add center-console-mounted rear air vents. Heated steering wheel functionality comes standard on the Limited trim.
Convenience equipment across the lineup includes remote keyless entry, push-button start, remote engine start, power door locks, and remote tailgate release through the key fob. Hyundai Digital Key 2 Touch comes standard on XRT and Limited trims.
SEL Activity, XRT, and Limited trims include a 15-watt wireless device charging system. Limited trims also add rain-sensing windshield wipers, an auto-dimming rearview mirror with HomeLink integration, illuminated glove compartment storage, and 64-color ambient interior lighting.
