2026 Hyundai Palisade near Loganville, GA
The 2026 Hyundai Palisade is engineered as a three-row sport utility vehicle that integrates multiple powertrain configurations, a reinforced unibody chassis, and a broad set of driver assistance systems. The model is available with a 3.5-liter V6 internal combustion engine and a 2.5-liter turbocharged hybrid system. Each configuration is paired with a dedicated transmission system and drivetrain layout to support performance, towing, and passenger capacity requirements. The structure uses high-strength steel in a monocoque design, which supports rigidity, crash energy management, and ride stability.
The 2026 Hyundai Palisade is configured with a 116.9-inch wheelbase and an overall width of 78.0 inches. Standard ride height measures 69.5 inches, while ground clearance varies between 7.4 inches and 8.4 inches depending on trim. The vehicle supports both front-wheel drive and an active on-demand all-wheel-drive system, which integrates traction management through selectable drive and terrain modes.
Engine Output and Hybrid System Integration
The 3.5-liter V6 engine uses a dual overhead camshaft configuration with 24 valves and combines multi-point injection with gasoline direct injection. Displacement is measured at 3,470 cubic centimeters. Output reaches 287 horsepower at 6,400 rpm and 260 pound-feet of torque at 5,000 rpm. The compression ratio is 12.3:1, and the engine operates using regular unleaded fuel. Idle Stop and Go technology is included to reduce fuel consumption during idle conditions.
The hybrid configuration uses a 2.5-liter turbocharged inline-four engine with 16 valves and a displacement of 2,497 cubic centimeters. The gas engine produces 258 horsepower at 5,800 rpm and 260 pound-feet of torque across a range from 1,800 to 4,500 rpm. The hybrid system combines the internal combustion engine with two electric motors. The first motor produces 17 horsepower and 75 pound-feet of torque, while the second motor produces 72 horsepower and 195 pound-feet of torque. Total system output is rated at 329 horsepower and 339 pound-feet of torque.
The hybrid system uses a lithium-ion battery with a capacity of 1.65 kilowatt-hours. The battery operates at 300 volts and provides a maximum power output of 64 kilowatts.
Transmission Architecture and Drivetrain Systems
The 3.5-liter V6 engine is paired with an 8-speed automatic transmission. Gear ratios are calibrated to balance acceleration and highway efficiency. The hybrid system uses a 6-speed automatic transmission integrated with electric motors, identified as the TMED-II system. Both configurations use a shift-by-wire system and include paddle shifters mounted on the steering wheel.
Front-wheel drive is standard on applicable trims. The HTRAC all-wheel-drive system is available and standard on XRT PRO. This system operates as an active on-demand configuration that distributes torque between the front and rear axles based on traction requirements. Drive Mode Select includes Eco, Sport, and My Drive modes. All-wheel-drive models include Terrain Mode Select with Mud, Snow, and Sand settings. Tow mode is integrated across configurations to adjust transmission behavior and torque delivery during towing conditions.
Suspension Design, Steering Ratio, and Brake Hardware
The front suspension uses a MacPherson® strut layout with coil springs and a stabilizer bar. The rear suspension uses an independent multi-link design with separate springs and shocks. A self-leveling suspension system is included to maintain ride height under varying load conditions.
Steering is controlled by a motor-driven power steering system with a rack-and-pinion design. The standard steering ratio is 14.3:1, while the XRT PRO uses a ratio of 13.3:1. The steering system requires 2.8 turns from lock to lock. The turning diameter is 39.2 feet for standard trims and 39.0 feet for XRT PRO.
The braking system includes ventilated front discs measuring 345mm in diameter and 30mm in thickness. Rear brakes use solid discs measuring 325mm in diameter and 20mm in thickness. Anti-lock braking with electronic brake-force distribution is standard. Additional systems include Brake Assist, Hillstart Assist Control, and an electronic parking brake with auto vehicle hold. All-wheel-drive models include selectable Downhill Brake Control.
Exterior Configuration and Functional Components
Wheel and tire configurations vary by trim level. Standard configurations include 18-inch alloy wheels with 235/65 tires. XRT PRO uses 18-inch wheels with 255/60 all-terrain tires. Higher trims use 20-inch wheels with 255/50 tires or 21-inch wheels with 265/45 tires. A compact spare tire is included on internal combustion models, while hybrid models use a tire mobility kit.
Exterior lighting includes LED daytime running lights, LED projector headlights, LED rear combination lamps, and LED interior lighting. High Beam Assist is standard across all trims. The vehicle also includes automatic headlights and a roof-mounted center high-mount stop lamp.
Additional exterior components include power side mirrors with heating and available power-folding and auto-dimming functions. Mirrors also integrate blind-spot warning indicators. The 2026 Hyundai Palisade includes solar control glass on the front doors and windshield, along with privacy glass on the rear sections. Acoustic glass is applied to the windshield and available on side windows for noise reduction.
The vehicle includes roof rails with a load capacity of 220 pounds and supports crossbar installation. A hands-free smart liftgate with adjustable height is available. The trailering package includes pre-wiring, heavy-duty cooling systems, and trailer sway control. An OEM-installed tow hitch is available on specific trims.
Interior Dimensions, Seating Systems, and Material Configurations
The 2026 Hyundai Palisade supports seven-passenger and eight-passenger configurations depending on trim and seating layout. Seating materials include cloth, H-Tex® leatherette, leather-trimmed surfaces, and premium Nappa leather. The front seats offer multiple adjustment options, including 8-way power adjustment, lumbar support, and integrated memory settings. Heated and ventilated front seats are available across upper trims.

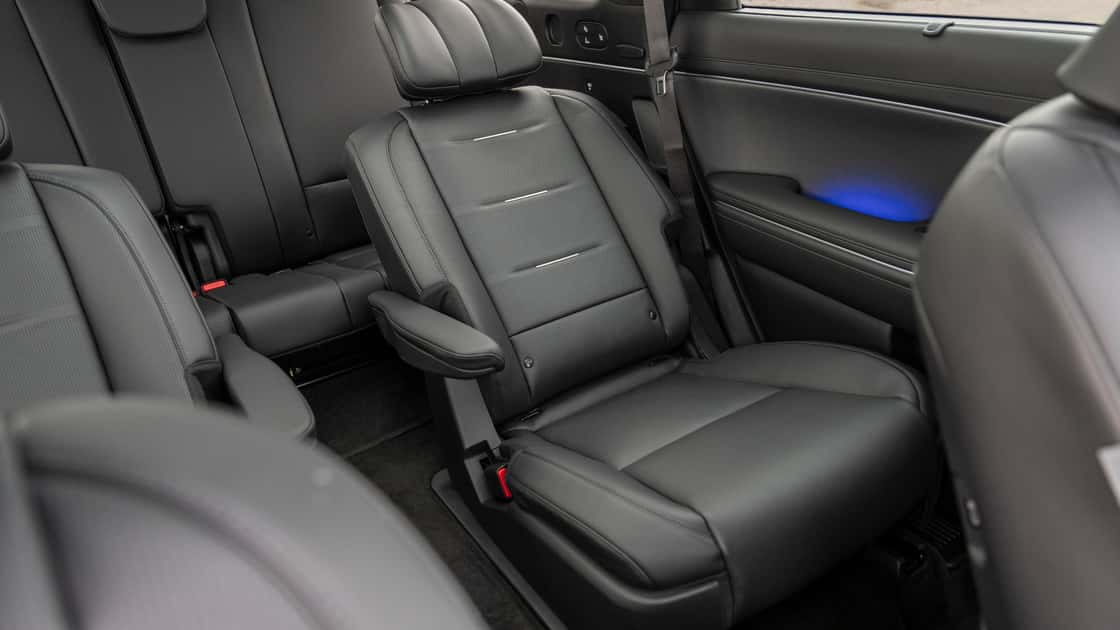

Second-row seating configurations include bench seating or captain’s chairs. Features include sliding functionality, recline adjustment, and available heating and ventilation. Power-adjustable second-row seats are available on higher trims. The third row includes split-folding seats with available power folding, reclining, and sliding functions.
Interior measurements include 44.2 inches of front legroom, 43.0 inches of second-row legroom, and 32.1 inches of third-row legroom. Shoulder room measures 61.4 inches in the front, 61.0 inches in the second row, and 55.6 inches in the third row. Cargo capacity measures 19.1 cubic feet behind the third row, 46.3 cubic feet behind the second row, and 86.7 cubic feet behind the front seats.
Infotainment System and Connectivity Hardware
The 2026 Hyundai Palisade uses a 12.3-inch touchscreen display with integrated navigation. The system supports wireless Apple CarPlay® and Android Auto™. Audio options include a standard system and an available Bose® 14-speaker premium system with Centerpoint and SoundTrue technologies.
The vehicle includes HD Radio™, SiriusXM® capability, and dynamic voice recognition. Passenger Talk enables communication between front and rear occupants through the audio system. Rear Seat Quiet Mode reduces audio output in rear seating areas.
Connectivity features include multiple USB-C charging ports across all three rows. Wireless device charging is available with a 15-watt output for compatible devices. A surround view monitor provides external visibility through multiple camera angles. A head-up display is available on higher trims. The Calligraphy trim includes a built-in front and rear dashcam system.
Telematics features include a connected car system, Wi-Fi hotspot capability, and over-the-air software updates. Digital key functionality allows compatible devices to access and operate the vehicle.
Climate Control, Instrumentation, and Driver Interface
The 2026 Hyundai Palisade includes a three-zone automatic climate control system with rear passenger controls and automatic defogging. Rear air vents are provided for both the second and third rows. A cabin air filter and PTC heater are included for temperature management.

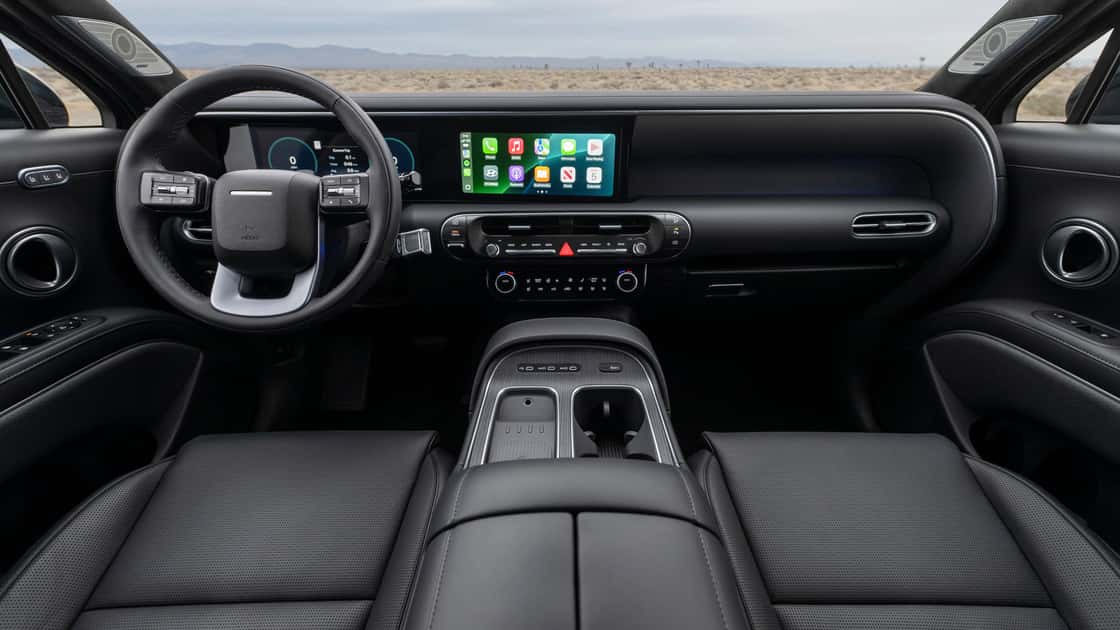

Instrumentation includes a digital cluster display with speedometer, tachometer, fuel level, and trip data. Higher trims include a 12.3-inch digital instrument cluster. Additional indicators include system warnings for braking, engine operation, tire pressure, and driver assistance features.
The steering wheel includes audio controls, cruise control functions, and haptic feedback. It supports tilt and telescoping adjustment. Paddle shifters are included for manual gear selection.
Safety Systems and Driver Assistance Technologies
The 2026 Hyundai Palisade includes a comprehensive safety system. Airbag coverage includes front airbags, a front center airbag, a driver knee airbag, side-impact airbags, and curtain airbags with rollover sensors. Seatbelt systems include pretensioners and load limiters across all seating rows.
Active safety systems include Blind-Spot Collision Warning, Rear Cross-Traffic Collision-Avoidance Assist, and Forward Collision-Avoidance Assist with detection for vehicles, pedestrians, and cyclists. Lane Keeping Assist and Lane Following Assist 2 support lane positioning. Driver Attention Warning and Forward Attention Warning monitor driver behavior.
Parking assistance includes forward and reverse distance warning, side distance warning on select trims, and reverse parking collision avoidance. Safe Exit Assist provides alerts for approaching traffic when opening doors. Highway Driving Assist is standard, with an upgraded version available on higher trims.
Passive safety components include front crumple zones, bodyside reinforcements, and an electronic shift lock system. Additional features include an immobilizer and an anti-theft system integrated with remote keyless entry.
Towing Capacity and Utility Specifications
The 2026 Hyundai Palisade supports a maximum towing capacity of 5,000 pounds for internal combustion models equipped with trailer brakes. Hybrid models support up to 4,000 pounds with trailer brakes. Without trailer brakes, towing capacity is rated at 1,650 pounds.
The vehicle includes a trailer sway control system as standard equipment. The trailering package includes pre-wiring for trailer connections and heavy-duty cooling systems for engine and transmission components. Fuel tank capacity measures 19.0 gallons for the V6 model and 18.2 gallons for the hybrid.
