2026 Hyundai IONIQ 9 near Coventry, GA
The 2026 Hyundai IONIQ 9 operates through Permanent Magnet Synchronous Motors that support multiple drive configurations. The RWD model produces 160 kW, which equals 215 horsepower, and generates 350 Nm, which equals 258 pound-feet of torque. The AWD model in its mid-level form produces 226.1 kW, which equals 303 horsepower, and provides 605 Nm, which equals 446 pound-feet of torque. The highest-output AWD version generates 314.6 kW, which equals 422 horsepower, paired with 700 Nm, which equals 516 pound-feet of torque.
The transmission system uses a single-speed reduction gear that enables efficient power transfer with minimal mechanical loss. The shift-by-wire system eliminates mechanical linkages for gear selection and contributes to smooth operation. Gear ratios include 13.16 on the RWD version and a split ratio on the AWD system that uses 10.65 for the front motor and 13.16 for the rear motor. Drive Mode Select provides selectable settings called Eco, Normal, Sport, Snow, and My Mode. Drivers can match the vehicle behavior to changing road conditions through adjustments to throttle sensitivity and steering feel without compromising system efficiency.
Battery Design and Charging Capabilities
The 2026 Hyundai IONIQ 9 is equipped with a high-capacity 110.3-kilowatt-hour lithium-ion battery system that operates at 610 volts. This battery supports significant driving range through optimized energy density. The RWD model is rated for 335 miles of estimated driving range. The mid-level AWD version is rated for 320 miles. The high-output AWD version is rated for 311 miles.
Charging performance is supported by multiple systems. NACS V3 fast charging completes a 10 to 80 percent charge in approximately 40 minutes. A 350 kW DC fast charger using a CCS adapter can complete the same interval in approximately 24 minutes. A 50 kW DC charger using a CCS adapter requires nearly 109 minutes from 10 to 80 percent. Level 2 AC charging at 240 volts and 48 amps requires approximately 9 hours and 40 minutes to reach 80 percent. The battery also includes a heating system with preconditioning to support consistent charging speeds in varied climates. The charge port is positioned on the passenger-side rear quarter for practical access to charging infrastructure.
Chassis Composition and Underbody Engineering
The 2026 Hyundai IONIQ 9 uses an advanced unibody structure constructed primarily from Advanced High-Strength Steel and High Tensile Steel. This type of construction is designed for rigidity and durability. Structural stiffness contributes to ride quality and stability during changes in direction.
The suspension uses a MacPherson® strut system in the front with gas dampers that assist in vertical control of wheel movement. The rear system uses a multi-link five-link design equipped with gas dampers for balanced handling across uneven surfaces. Steering is controlled through a rack-mounted motor-driven power steering system. The steering ratio is 16.02 at 360 degrees, and the number of turns lock to lock is 2.93. The turning diameter curb to curb is measured at 41 feet.
Braking incorporates ventilated disc brakes on both front and rear wheels. The front discs measure 360 by 30 millimeters, and the rear discs measure 345 by 20 millimeters. The system includes ABS with Electronic Brake Force Distribution. Additional features include Hillstart Assist Control, regenerative brake control paddles, an active hydraulic booster, Brake Assist, and an electric parking brake with automatic vehicle hold.
Exterior Engineering and Functional Design

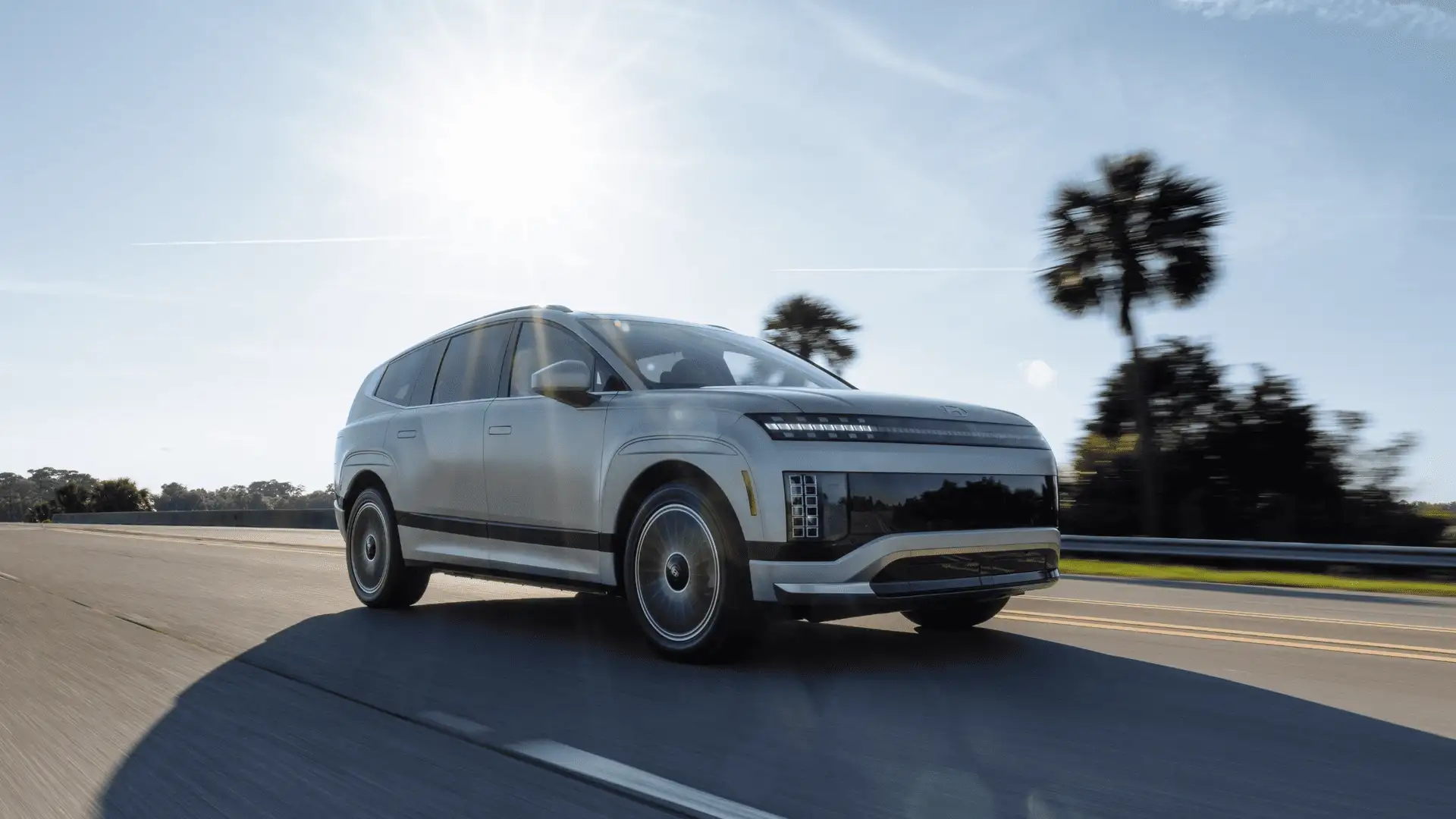

The exterior design of the 2026 Hyundai IONIQ 9 integrates aerodynamic efficiency with functional components. The vehicle includes LED headlights, LED daytime running lights, LED taillights, and an LED center high-mount stop lamp. All trims include solar front glass and laminated acoustic windshield and side glass for reduced cabin noise. Wheel options include 19-, 20-, and 21-inch alloys depending on trim. Tire selections correspond to wheel size, with the largest option using 285 45 R21 specifications on upper trims.
Exterior mirrors are body colored and heated. All trims include Blind Spot Collision Avoidance Assist integrated into the mirror functions. Upper trims add power folding capabilities. Rain-sensing wipers and aero-type wiper blades are included on all models. The vehicle also incorporates active air flaps on the lower front grille to improve aerodynamic efficiency. The charge port door opens and closes automatically. A power liftgate with automatic open functionality is included. Roof side rails use a flush-type design.
Interior Configuration and Technology Integration
The interior of the 2026 Hyundai IONIQ 9 supports six or seven passengers depending on trim. Seating materials include stain-resistant cloth on lower trims and H-Tex®-trimmed seating on higher trims. The driver receives an eight-way power seat on all trims. The passenger receives eight-way power seating starting on the S trim. Lumbar support is available in two- or four-way configurations depending on trim level. Heated front seats are included on all models, and ventilated front seats become available on SEL and higher trims.

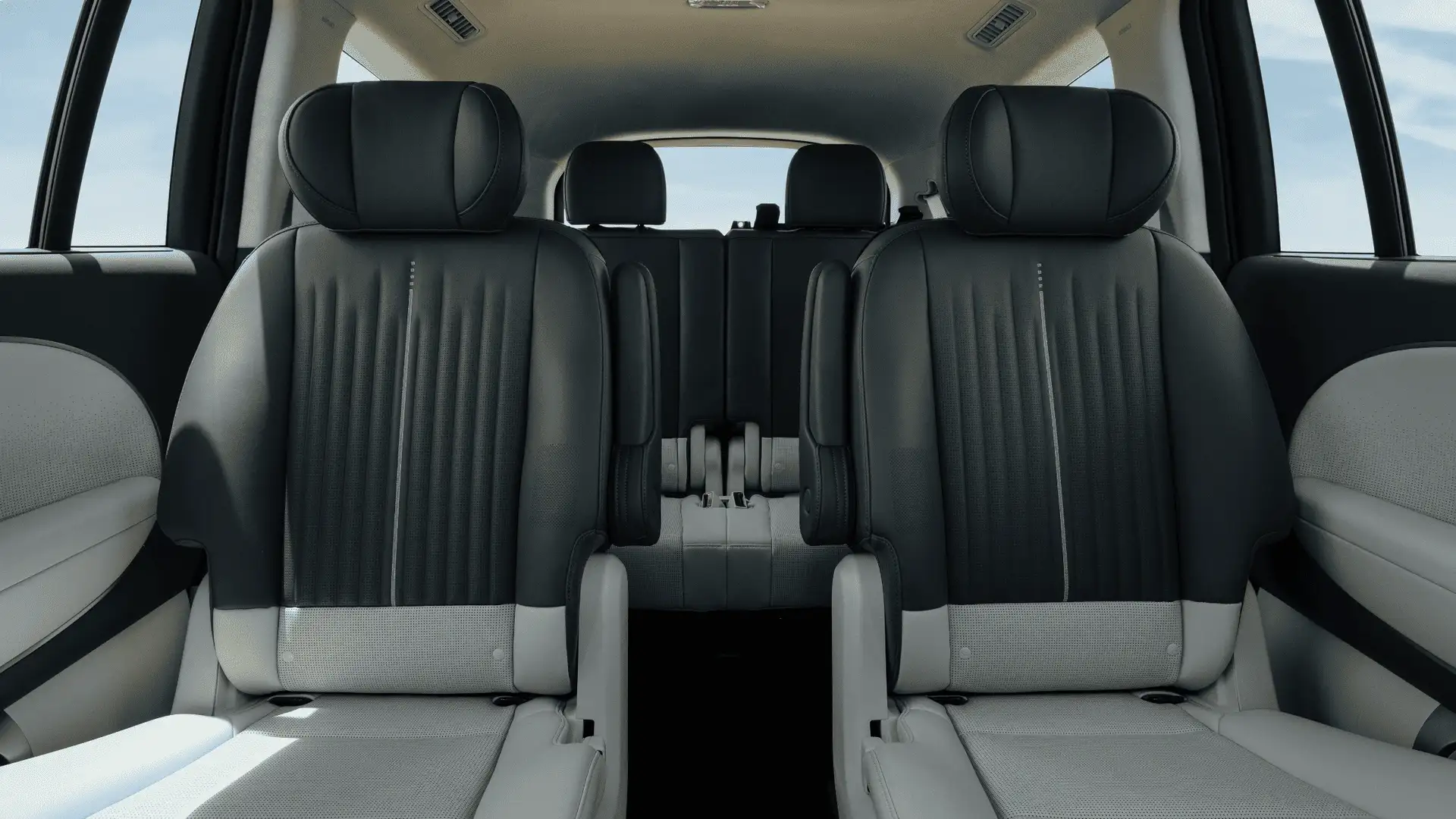

The second row includes either a bench configuration or power captain’s chairs with walk-in functions and leg rests on upper trims. Ventilated second-row seats are available on Limited and Calligraphy versions. The third row is either manual or power folding depending on trim.
Technology features include a 12.3-inch ccNC navigation unit with over-the-air updates, SiriusXM® Satellite Radio, HD Radio™, Wi-Fi Hotspot, wireless device charging, and wireless Android Auto™ and Apple CarPlay®. A Bose® premium audio system is included on Limited and Calligraphy trims. A total of seven USB-C ports are distributed through all three seating rows.

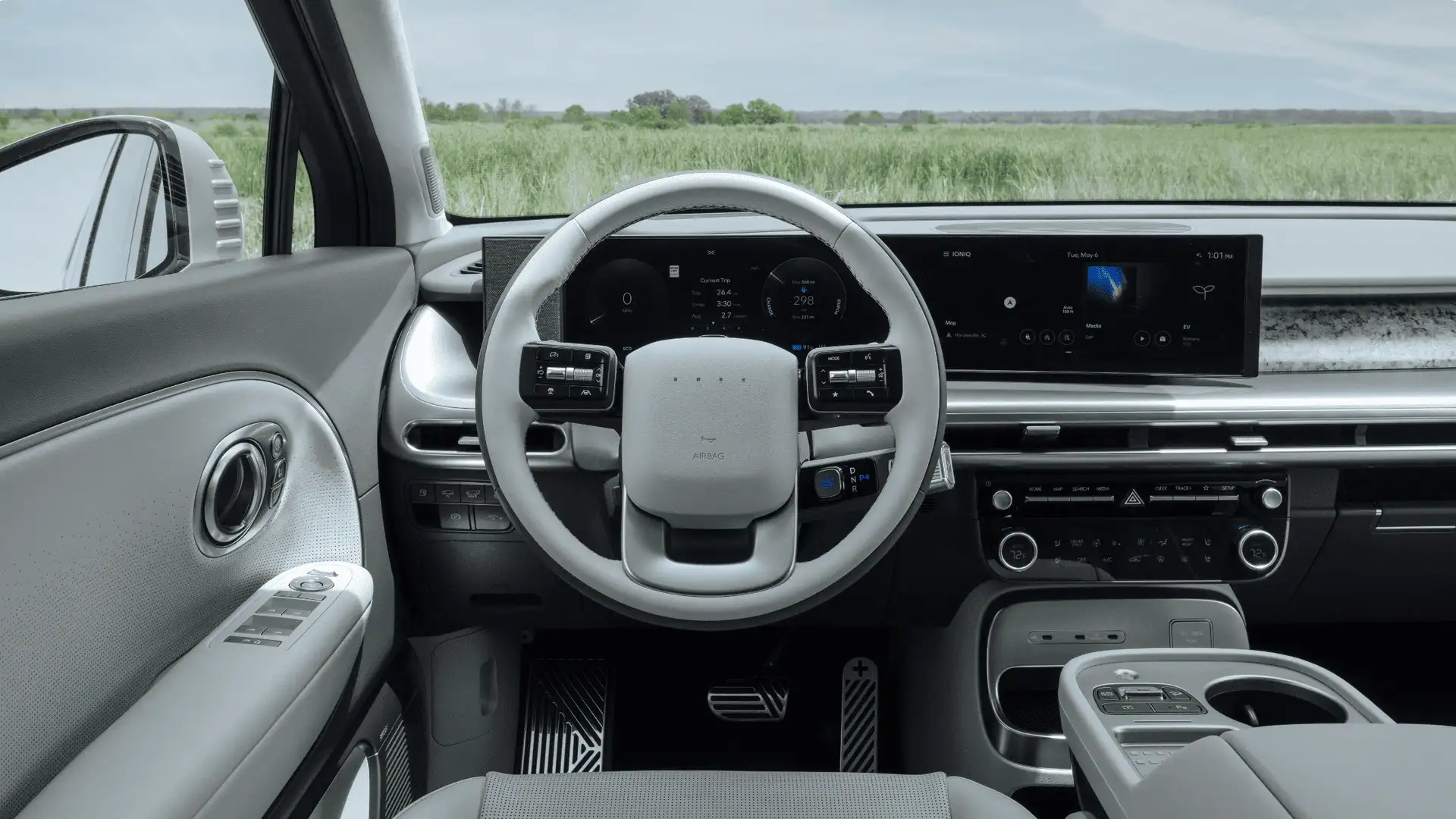

Instrumentation includes a 12.3-inch digital cluster with speed, power usage, charge level, ADAS indicators, and drive mode information. The Calligraphy trim includes a 10-inch head-up display. The steering wheel includes regeneration paddles, audio controls, cruise controls, and heating on upper trims.
Driver Assistance Systems and Safety Engineering
The 2026 Hyundai IONIQ 9 contains a wide collection of active safety features. These include Forward Collision Avoidance Assist with detection abilities for cars, pedestrians, cyclists, junction turning, junction crossing, lane change oncoming, lane change side detection, and evasive steering. Lane Keeping Assist and Lane Following Assist are standard. Highway Driving Assist 2 and Smart Cruise Control 2 with Stop and Go are also included on all trims.
Blind Spot Collision Avoidance Assist is included on all versions. Rear Cross Traffic Collision Avoidance Assist is standard. Parking Distance Warning is included for forward and reverse functions. Upper trims include side detection capability and additional systems such as Parking Collision Avoidance Assist, Surround View Monitor, Blind Spot View Monitor, and Remote Smart Parking Assist 2.
Restraint systems include three-point seatbelts for all outboard seats, adjustable front seatbelt anchors, pretensioners and load limiters across the first, second, and third rows, power window lockout, and rear child safety locks. Standard stability systems include Electronic Stability Control, Traction Control, Vehicle Stability Management, and a Tire Pressure Monitoring System with individual tire indicators.
Dimensional Engineering and Capacity
The 2026 Hyundai IONIQ 9 measures 123.2 inches in wheelbase and 199.2 inches in overall length. The width is 78 inches, and the height is 70.5 inches. Tread width varies slightly based on wheel size, with front tread at 67 inches for 19-inch wheels and 66.6 inches for 20- and 21-inch wheels. Rear tread width is 67.5 inches for 19-inch wheels and 67.1 inches for the larger sizes. Ground clearance is 6.9 inches. Total interior volume is measured at 185.44 cubic feet, with passenger volume at 163.54 cubic feet on seven passenger models. Cargo volume measures 86.9 cubic feet behind the first row, 46.7 cubic feet behind the second row, and 21.9 cubic feet behind the third row.
