2026 Hyundai IONIQ 9 in Athens, GA
The 2026 Hyundai IONIQ 9 is Hyundai Motor Company’s newest full-size all-electric SUV. This model introduces a vehicle platform engineered to deliver scalable electric performance, reliable range, and practical onboard technology for both everyday and extended use. It is built on Hyundai’s Electric Global Modular Platform (E-GMP) and is designed for seven- or six-passenger capacity across multiple trims.
Electric Powertrain and Battery System
The 2026 Hyundai IONIQ 9 is available in Rear-Wheel Drive and All-Wheel Drive configurations. Each version uses a Permanent-Magnet Synchronous Motor system. The RWD model offers 160 kilowatts of power, while the dual-motor AWD variant produces up to 320 kilowatts. All variants utilize a lithium-ion battery system with a total capacity of 110.3 kilowatt-hours.
This model supports multiple charging scenarios. It features an 800V electrical architecture that allows ultra-fast DC charging up to 350 kilowatts. The vehicle includes an on-board charger with a maximum AC capacity of 10.9 kilowatts. Charging access is located on the passenger side rear quarter panel and is designed for automatic open and close operation. The battery management system includes integrated control for heating and thermal stabilization.
Drivability and Handling Configuration
The 2026 Hyundai IONIQ 9 has been equipped with a single-speed reduction gear transmission that uses shift-by-wire technology. The gear ratio differs slightly depending on configuration, with a 13.16 ratio in RWD and 10.65 front/13.16 rear in AWD. The steering system uses a column-mounted motor-driven power steering module and a rack-and-pinion gearset. It delivers a 16.02 steering ratio and achieves a curb-to-curb turning diameter of 41 feet.
The drive mode select system includes Eco, Normal, Sport, Snow, and My Mode settings. These modes are activated via a steering-wheel-mounted selector. This system directly adjusts throttle sensitivity, steering weight, and brake regeneration behavior. The 2026 Hyundai IONIQ 9 uses regenerative braking paddles that can be controlled manually to adjust the level of deceleration energy recovery.
Suspension, Braking, and Chassis
The suspension system integrates a front MacPherson® strut design and a rear multi-link five-link setup. Each corner is fitted with gas dampers tuned for load stability and road compliance. The braking system consists of front ventilated discs with a 360-millimeter diameter and 30-millimeter thickness. The rear braking disc measures 345 millimeters in diameter and 20 millimeters in thickness. The electric parking brake includes automatic hold, and the vehicle features a hydraulic brake booster system with regenerative brake blending. The braking system is supported by electronic brake-force distribution and four-wheel ABS.
The 2026 Hyundai IONIQ 9 is built on a unibody chassis composed primarily of advanced high-strength steel and high-tensile steel. The minimum ground clearance is measured at 6.9 inches, and the coefficient of drag is listed at 0.269, which supports aerodynamic performance for a vehicle of this size.
Lighting, Wheels, and Exterior Functions
Exterior lighting includes LED projector headlights, high beam assist, and LED taillights. The lighting package also features LED daytime running lights, a center high-mounted stop lamp, and automatic illumination sensors. The power liftgate includes automatic open detection. Exterior mirrors are body-colored with integrated turn indicators and heating functionality. Higher trim levels include power-folding features. The charge port door operates automatically and integrates with keyless entry commands.
Wheel sizes vary by trim, starting from 19 inches and extending to 21 inches. Tire dimensions range from 255/60R19 in lower trims to 285/45R21 in Calligraphy trims. Active air flaps in the lower grille adjust automatically based on speed and thermal load. The sunroof system, available in upper trims, spans both seating rows and integrates with the vehicle’s lighting and HVAC controls. Roof rails are flush-mounted and rated for aerodynamic consistency.
Cabin Capacity and Seat Design

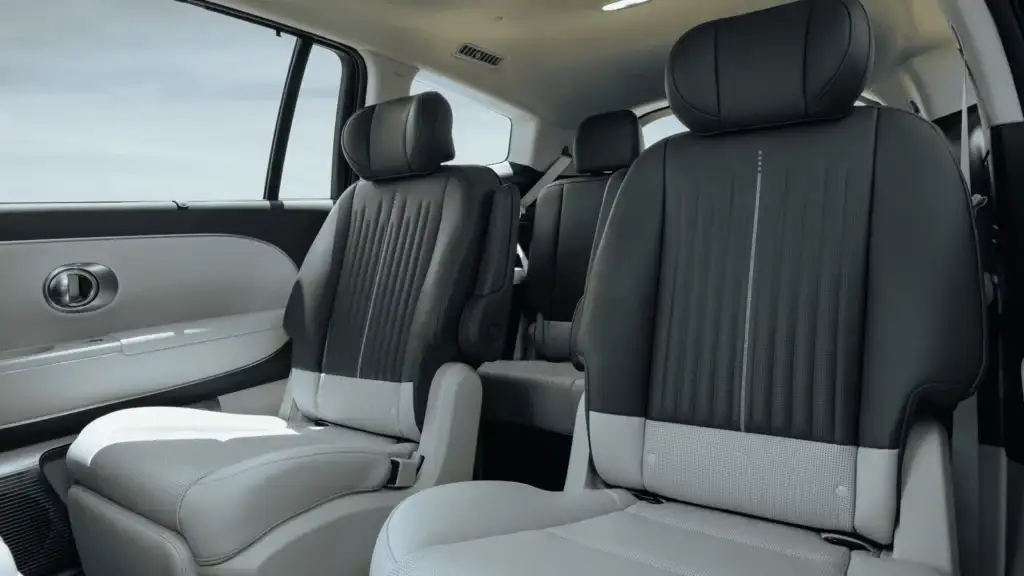

The interior cabin supports either seven or six passengers, depending on trim selection. The base and mid-trim models offer bench seating in the second row. Limited and Calligraphy trims include power-adjustable captain’s chairs with a one-touch walk-in function, leg rests, and wing-type headrests. Power adjustment is standard for the driver seat across all models, while passenger-side adjustment is included from the SE trim upward. Lumbar support, heating, and ventilation functions are available depending on seating position and trim level.
In terms of space, the 2026 Hyundai IONIQ 9 provides 86.9 cubic feet of storage behind the first row. The 46.7 and 21.9 cubic feet behind the second and third rows, respectively, allow for modular storage depending on configuration. Second-row seating includes manual slide functionality or powered actuation on select models. The third-row seating folds flat manually in lower trims and with power assist in upper trims.
Infotainment, Interfaces, and Instrumentation
A 12.3-inch infotainment display is standard on all trims. It includes navigation, SiriusXM® radio, HD Radio™, Wi-Fi hotspot compatibility, and over-the-air software update support. Wireless Android Auto™ and Apple CarPlay® are standard. All models feature a rearview monitor with parking guidance, and select trims are equipped with a surround-view monitor and blind-spot view monitor systems.

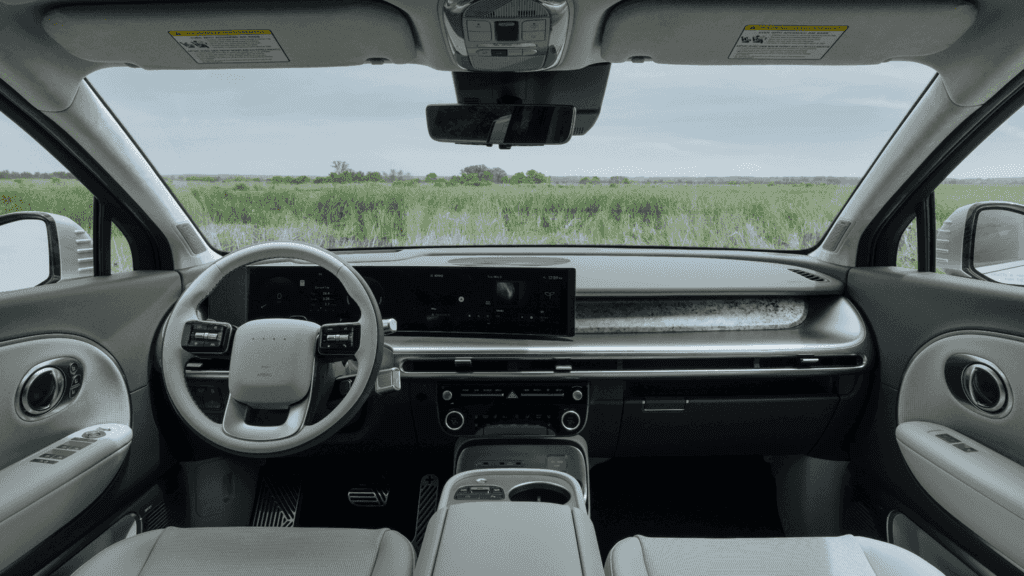

There are seven USB-C ports distributed across the cabin. Wireless charging is available in the front row. The digital instrument cluster measures 12.3 inches and displays speed, power usage, drive mode, and ADAS system activity. A head-up display is standard on the Calligraphy trim and projects critical information in the driver’s line of sight.
HVAC and Cabin Electronics
The HVAC system includes dual automatic temperature control and separate controls for the second row. Air vents are integrated into all three rows. A heat pump system is included across the lineup for improved thermal efficiency in colder temperatures. The steering wheel is leather-wrapped and includes paddle shifters for regenerative braking adjustment. Higher trims add two-tone steering wheel designs, heating, and power tilt and telescoping adjustment.
Convenience features include power windows with auto-up/down for all rows, proximity key entry, push-button start, and remote release functions for the hood, trunk, and charge port. A two-way Vehicle-to-Load (V2L) charging function is included on Limited and Calligraphy trims, allowing external devices to draw power directly from the vehicle battery.
ADAS Systems and Safety Controls
Standard active safety systems include Forward Collision Avoidance Assist, Lane Keeping Assist, Lane Following Assist, Driver Attention Warning, and Smart Cruise Control. These systems function with vehicle, pedestrian, cyclist, and junction detection. Blind-Spot Collision Avoidance Assist and Rear Cross-Traffic Collision Avoidance Assist are also standard. Side and forward Parking Collision Avoidance, along with Parking Distance Warning, are added in higher trims.
Remote Smart Parking Assist 2 is available through a feature-on-demand upgrade for equipped trims. Highway Driving Assist 2 and Smart Cruise Control 2 integrate with map-based data to adjust driving behavior during highway travel. Additional safety features include radar-based Rear Occupant Alert and Safe Exit Assist.
Seatbelt pretensioners are present in all seating rows. Child safety locks, electronic stability control, and traction control systems are integrated by default. A tire pressure monitoring system with individual tire display is standard.
Dimensions and Structure
The vehicle measures 199.2 inches in length with a 123.2-inch wheelbase. The overall width is 78 inches, and the height is 70.5 inches. The front and rear overhangs measure 34.6 and 41.3 inches, respectively. Tread width varies slightly based on wheel size. The total passenger interior volume is listed at 163.54 cubic feet in the seven-passenger configuration.
Visit ALM Hyundai of Athens to Schedule a Test Ride
Drivers seeking an electric vehicle with dual-motor capability, advanced regenerative braking, multi-zone climate control, and integrated safety systems are encouraged to schedule a test drive of the 2026 Hyundai IONIQ 9. The model’s lithium-ion battery with 110.3 kWh capacity, ultra-fast 800V charging system, and configurable AWD drivetrain are technical features suited to a range of driving requirements. ALM Hyundai of Athens in Athens, GA, is currently hosting test drive appointments for evaluation of this model’s performance, cabin systems, and electric capabilities.
