2026 Hyundai IONIQ 5 nearby Loganville, GA
The 2026 Hyundai IONIQ 5 is an all-electric vehicle built around rear-wheel-drive and all-wheel-drive configurations, permanent-magnet synchronous motor technology, high-voltage battery systems, and a full range of comfort, convenience, safety, and connectivity features. It offers multiple motor and battery combinations, including a RWD Standard Range configuration, a higher-output RWD configuration, and an AWD layout that combines front and rear motor output. The model supports AC Level II charging, NACS DC fast charging, and DC fast charging with a CCS adapter, with charging capability structured around both 400V and 800V charging conditions. The 2026 Hyundai IONIQ 5 also integrates chassis, suspension, braking, steering, driver assistance, cabin technology, and utility features that support daily operation and functional versatility.
Electric Powertrain, Battery Systems, and Charging
The 2026 Hyundai IONIQ 5 uses a permanent-magnet synchronous motor system across its electric motor configurations. The RWD Standard Range model produces 125 kW, equal to 168 horsepower, and 350 Nm, equal to 258 lb.-ft. of torque. The RWD model increases output to 168 kW, equal to 225 horsepower, while maintaining 350 Nm of torque. The AWD configuration uses a 74 kW front motor and a 165 kW rear motor for a combined output of 320 horsepower. The AWD system also raises maximum torque to 605 Nm, equal to 446 lb.-ft., giving the 2026 Hyundai IONIQ 5 a stronger-output configuration with added traction capability.
Battery Capacity and Electrical Architecture
The RWD Standard Range configuration uses a lithium-ion battery with 523V architecture and 63.0 kWh of battery system capacity. RWD and AWD models use a lithium-ion battery with 697V architecture and 84.0 kWh of battery system capacity. The RWD Standard Range battery lists a power output of 195 kW, while the RWD and AWD battery systems list a power output of 277 kW. Battery construction includes 288 cells in 24 modules for the RWD Standard Range battery and 384 cells in 32 modules for the RWD and AWD battery. The battery system also includes a battery heating system with battery preconditioning functionality, which supports charging preparation under applicable operating conditions.
Charging Hardware and Charge Times
The 2026 Hyundai IONIQ 5 places its charge port on the passenger-side rear quarter panel. All models include an onboard charger with ultra-fast charging capability up to 800V and 350 kW, along with a maximum capacity of 10.9 kW and output density of 1.4 kVA per liter. AC Level II charging from 10 percent to 100 percent takes 5 hours and 40 minutes for the RWD Standard Range battery and 7 hours and 20 minutes for the RWD and AWD battery system. NACS DC fast charging at 150 kW and 400 V from 10 percent to 80 percent takes 24 minutes for the RWD Standard Range battery and 30 minutes for the RWD and AWD battery. With a CCS adapter, DC fast charging at 50 kW from 10 percent to 80 percent takes 1 hour and 1 minute for the RWD Standard Range battery and 1 hour and 21 minutes for the RWD and AWD battery, while DC fast charging above 250 kW at 800V from 10 percent to 80 percent takes 20 minutes for both battery systems.
Disclaimer: Approximately 20 minutes to charge from 10% to 80% on a 350-kW, 800V DC ultra-fast charger using the CCS adapter included with the 2026 IONIQ 5. Actual charging time varies based on a number of factors, including current battery charge level, output of the charging unit, vehicle and battery settings, battery temperature and outside temperature. Ultra-fast charging stations are provided by independent companies and availability is not guaranteed.
Drive System, Steering, Braking, and Chassis Engineering
The 2026 Hyundai IONIQ 5 uses an electric drive system designed for RWD and AWD configurations. All models use a single-speed reduction gear and shift-by-wire operation. The gear ratio and final gear ratio measure 2.263 and 4.706, respectively. The driveline uses a front dog clutch disconnector and does not use a rear clutch. Lubricant oil capacity measures 3.2 liters for the front and 3.4 liters for the rear, supporting the mechanical requirements of the electric drive components.
Drive Modes and Steering
Drive Mode Select gives the 2026 Hyundai IONIQ 5 Eco, Normal, Sport, and Snow modes through a steering-wheel button. The XRT trim adds Terrain Mode Select with Snow, Mud, and Sand settings, also controlled through a steering-wheel button. Steering hardware includes a rack-and-pinion steering gear and rack-mounted Motor Driven Power Steering. The steering system uses a 14.26:1 overall ratio and requires 2.67 turns from lock to lock. The curb-to-curb turning diameter measures 39.4 feet, which provides defined maneuverability data for parking, low-speed turns, and daily driving situations.
Suspension, Brakes, and Body Structure
The 2026 Hyundai IONIQ 5 uses a MacPherson® strut front suspension with high-performance dampers and a multi-link five-link rear suspension with high-performance dampers. Its braking system uses ventilated front discs measuring 325 mm by 30 mm, or 12.8 inches by 1.2 inches. The rear brakes use solid discs measuring 325 mm by 12 mm, or 12.8 inches by 0.5 inches. ABS with Electronic Brake-force Distribution operates through four wheels, four channels, and four sensors, and all models include Hillstart Assist Control, Brake Assist, an electric parking brake with Automatic Vehicle Hold, and regenerative brake control paddles. The body uses a unibody, monocoque construction with primary use of Advanced High-Strength Steel and High Tensile Steel.
Exterior Design, Lighting, Glass, and Utility Equipment

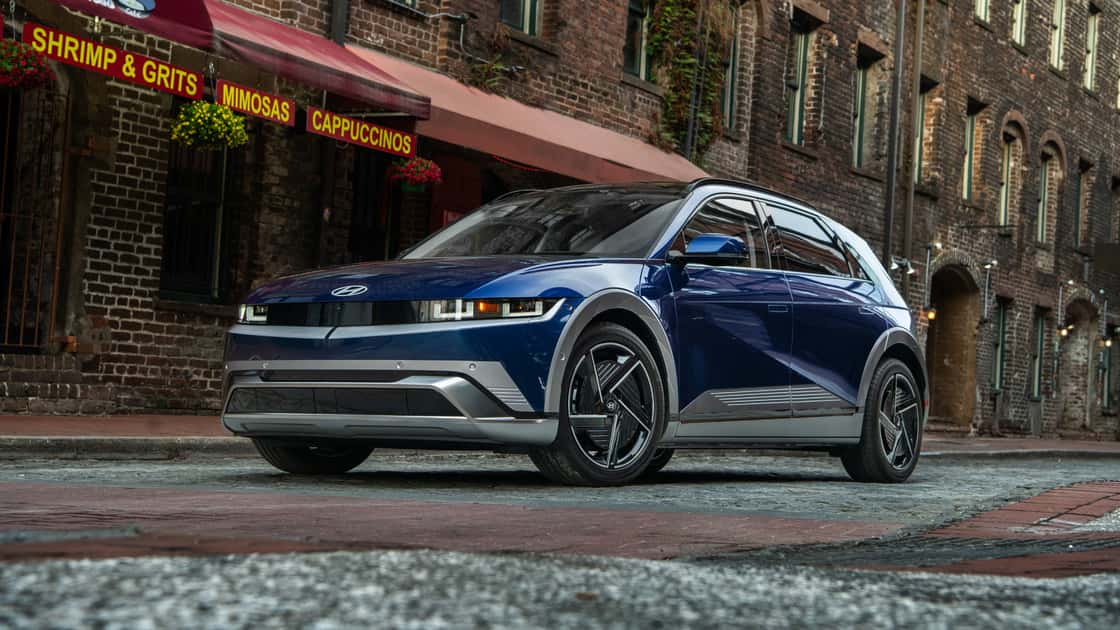

The 2026 Hyundai IONIQ 5 organizes its exterior equipment by trim, with SE, SEL, XRT, and Limited configurations. Wheel and tire equipment varies by model, with 19 x 7.5J alloy wheels and 235/55R19 tires on SE and SEL. XRT uses 18 x 7.5J alloy wheels and 235/60R18 tires. Limited wheel and tire equipment depends on drivetrain, with RWD models using 19-inch wheels and AWD models using 20 x 8.5J alloy wheels with 255/45R20 tires. A Tire Mobility Kit comes standard across the lineup.
Lighting, Mirrors, and Exterior Details
All 2026 Hyundai IONIQ 5 trims include LED daytime running lights, automatic headlights, High Beam Assist, LED interior lights, a cargo light, LED taillights, and an LED center high-mount stop lamp. SE and SEL use MFR-type LED headlights, while XRT and Limited use projector-type LED headlights. The Limited adds premium front LED accent lighting with a “V” light bar. All trims include heated outside mirrors, Blind-Spot Collision Indicator functionality, and LED turn signal indicators, while Limited adds power-folding mirrors. Exterior details include active grille shutters in the lower front grille, flush-type body-color door handles with automatic operation, a black shark-fin roof antenna, a power open-and-close charge port door, and an integrated rear spoiler with LED CHMSL.
Glass, Wipers, Liftgate, and Trailering Provisions
The 2026 Hyundai IONIQ 5 includes solar front glass for the windshield and front doors across the trim range. SEL, XRT, and Limited include laminated front and rear glass, while SE lists front-only laminated glass. Acoustic windshield glass comes standard, and SEL, XRT, and Limited add acoustic front and rear glass, while SE lists front-only acoustic glass. All trims include privacy glass for the rear, quarter, and heated back glass, “Aero” wiper blades, front two-speed variable intermittent windshield wipers, and a rear wiper and washer. Limited adds rain-sensing front windshield wipers and a Vision Roof panoramic fixed glass sunroof with sunshade, while SEL, XRT, and Limited include a hands-free Smart Power Liftgate with auto open and adjustable height setting.
Interior Comfort, Seating, Storage, and Climate Control

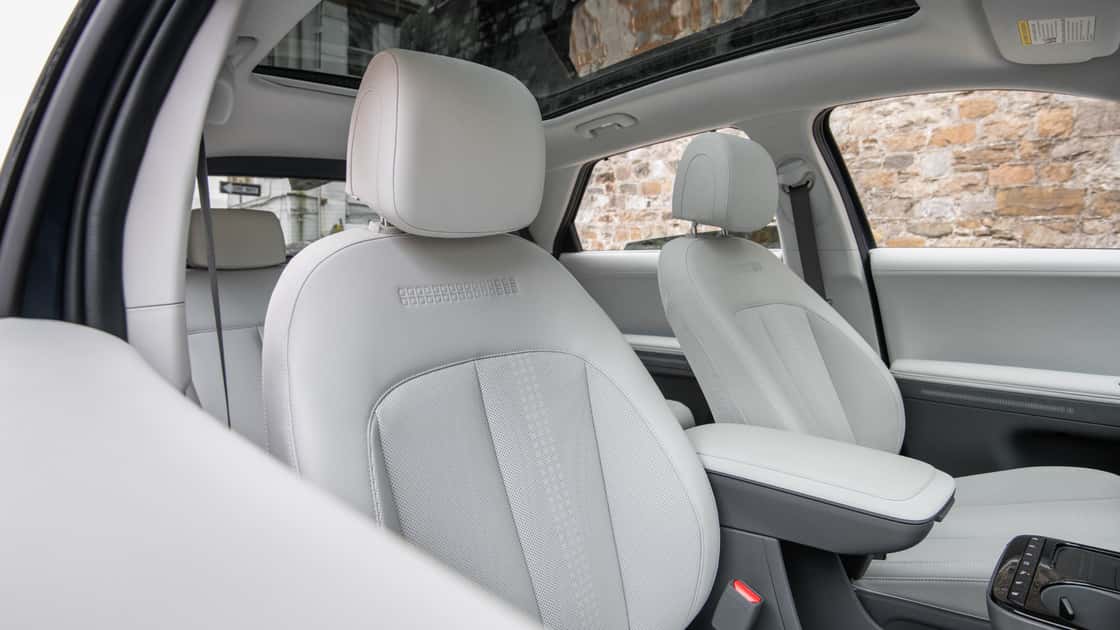

The 2026 Hyundai IONIQ 5 seats five occupants and offers interior equipment designed around comfort, adjustability, and practical cabin use. SE includes stain-resistant cloth seating surfaces, while SEL, XRT, and Limited use one-tone H-Tex® artificial leather seating surfaces. Every trim includes an 8-way power driver’s seat, heated front seats, and a 60/40 split fold-down manual sliding rear bench seat with a reclining seatback. SE includes a 6-way adjustable passenger seat and driver power lumbar support, while SEL, XRT, and Limited add an 8-way power passenger seat and front power lumbar support. Limited adds ventilated front seats, an integrated memory system for the driver’s seat, a driver’s seat with Relaxation Function, heated rear outboard seats, and seatback pockets for both front seats.
Cabin Trim and Functional Storage
The 2026 Hyundai IONIQ 5 uses cloth roof trim and metallic-painted interior door handles across the lineup. All trims include front and rear door storage pockets, bottle holders, front and rear power window switches, dual vanity mirrors with covers, sliding sunvisor function, sunvisor illumination, and a column-type shift knob with shift-by-wire operation. SE and SEL use fixed armrest storage with a tray, while XRT and Limited use sliding armrest storage with a tray. The Limited adds soft-touch door panels and a removable retractable cargo area cover. All trims include four cargo tie-down anchors, while carpeted floor mats and a cargo net appear as port-installed options.
Climate Control and Interior Lighting
Dual automatic temperature control with Driver Only mode comes standard across the 2026 Hyundai IONIQ 5 range. SEL, XRT, and Limited add second-row A/C vents, while all trims include an external temperature display, a PTC heater, a cabin air filter, and a rear window defroster with a timer. AWD models include a heat pump. The steering wheel uses a 3-spoke design, H-Tex® wrapping, regenerative braking paddle shifters, tilt and telescoping adjustment, audio controls, Bluetooth® hands-free controls with wireless audio streaming and phonebook transfer, and smart cruise control. Limited adds a heated steering wheel, while all trims include LED interior lights, a cargo area light, a front trunk LED light, illuminated power window switches, and central dome lighting with delay and auto cut-off.
Infotainment, Connectivity, Instrumentation, and Convenience Technology

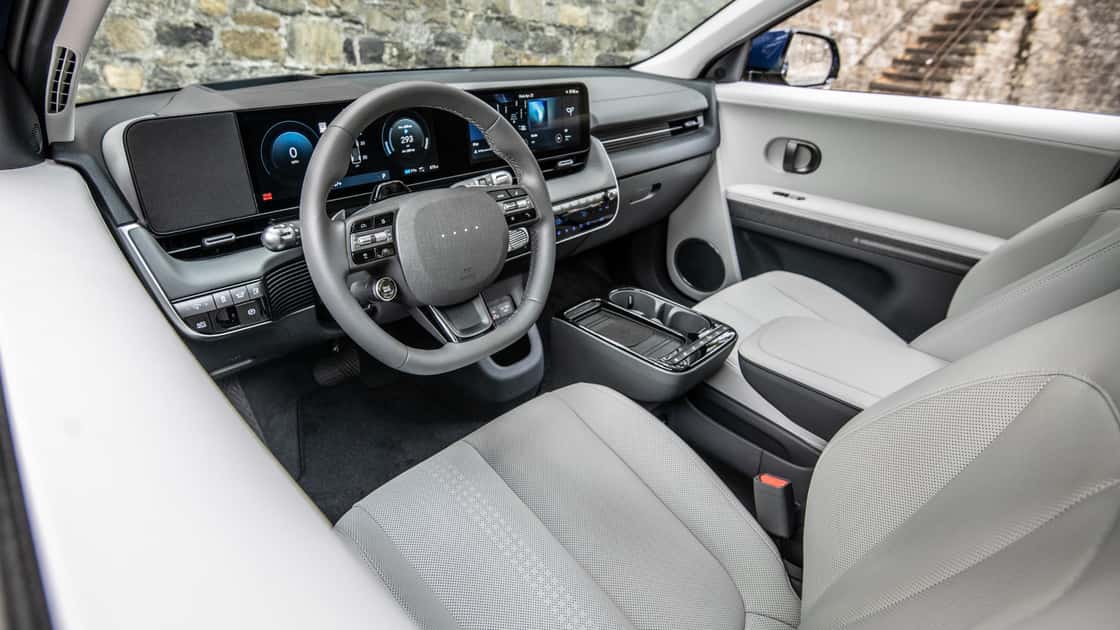

The 2026 Hyundai IONIQ 5 equips every trim with a 12.3-inch color touchscreen using ccNC functionality. The system includes AM, FM, SiriusXM®, HD Radio™, six speakers, onboard navigation, and traffic flow and incident data through HD Radio™ using HERE. Dynamic Voice Recognition, wireless Android Auto™, wireless Apple CarPlay®, and Bluetooth® Multiple Device Connection for up to two devices come standard. Every model also includes three first-row and two second-row USB-C outlets, with one power and data outlet and four power outlets. XRT and Limited add Bose® premium audio with an external amplifier and eight speakers, including two front door-mounted speakers, two tweeters, two rear speakers, a center front speaker, and a subwoofer.
Displays, Telematics, and Access Features
All 2026 Hyundai IONIQ 5 trims include a 12.3-inch digital instrument cluster with EV Technology Display. The instrumentation includes a speedometer, system power gauge, charge level display, digital odometer, trip odometer, regenerative braking level indication, smart cruise control indication, drive mode and ready-to-drive status, and safety-system indicators for BCA, LKA, DAW, FCA, SEA, and HDA. Warning lights include battery charge, door ajar, airbag, seatbelt, headlight, and power steering alerts, with seatbelt reminders for the driver and all passengers. Bluelink®+ Connected Car System, Bluelink®+ Remote Charge Access, Wi-Fi Hotspot, and Hyundai Pay come standard across all trims. Proximity key entry with push-button start also comes standard, while XRT and Limited add Hyundai Digital Key 2 Premium with NFC, BLE, and UWB technology.
Convenience and Power Features
Smart Cruise Control with Stop & Go comes standard, and SEL, XRT, and Limited add Machine Learning functionality. Power windows vary by trim, with SE offering driver auto-down and auto-up operation, while SEL, XRT, and Limited add front auto-down and auto-up operation. All trims include power door locks, remote keyless entry with alarm and panic function, remote hood release, remote charge-door release, a fixed center stack storage tray, dual cupholders for the front center console and rear seat center armrest, two 12-volt outlets, four assist grips, and one rear coat hanger. XRT and Limited add Parking Assist and Remote Smart Parking Assist, along with Vehicle to Load functionality through a two-way onboard charger in the second row. Limited adds rear side-window sunshades, a digital rearview mirror with HomeLink, a Premium Head-up Display, ambient interior lighting, and a 15W wireless phone charger also offered on SEL and XRT.
Safety, Driver Assistance, Dimensions, and Utility
The 2026 Hyundai IONIQ 5 includes a safety package that combines restraint systems, active safety functions, driver assistance technology, and passive safety construction. The restraint system includes advanced front airbags for the driver and front passenger, an Occupant Classification System with a seat weight sensor and seat track sensor, front side-impact thorax airbags, side air curtains for front and rear passengers with rollover sensors, and rear side airbags. All seating positions use 3-point seatbelts, and the vehicle includes adjustable front-seat shoulder belt anchors, seatbelt pretensioners, and load limiters for all outboard seating positions and rear LATCH lower anchors with upper tether anchors. Power-operated rear child safety locks and a power window lock-out button support passenger security. Active safety equipment includes a regenerative braking system with ABS and four-wheel disc brakes, Electronic Stability Control with Traction Control and Brake Assist, Vehicle Stability Management, and a Tire Pressure Monitoring System with Individual Tire Indicator and Tire Fill Complete Alert.
Driver Assistance Systems
The 2026 Hyundai IONIQ 5 includes Rear Cross-Traffic Collision-Avoidance Assist, Parking Distance Warning for reverse and forward operation, Lane Keeping Assist, Lane Following Assist, steering-wheel haptic feedback for LKA and BCA, Intelligent Speed Limit Assist, Driver Attention Warning, Forward Attention Warning, Safe Exit Assist, Navigation-based Smart Cruise Control with Curve Control, and High Beam Assist across all trims. SE includes Blind-Spot Collision Warning, while SEL, XRT, and Limited add Blind-Spot Collision-Avoidance Assist. XRT and Limited add a Surround View Monitor, Blind-Spot View Monitor, side Parking Distance Warning, and Parking Collision-Avoidance Assist for reverse, forward, and side operation. SE uses Forward Collision-Avoidance Assist with car, pedestrian, cyclist, and junction-turning detection. SEL, XRT, and Limited add an expanded Forward Collision-Avoidance Assist configuration with car, pedestrian, cyclist, junction turning and crossing, lane change oncoming, lane change side detection, and Evasive Steering Assist.
Dimensions, Passenger Space, and Cargo Volume
The 2026 Hyundai IONIQ 5 has a 118.1-inch wheelbase, 183.3-inch overall length, 74.4-inch overall width, and 63.0-inch overall height, with XRT height listed at 64.0 inches. Minimum ground clearance measures 6.1 inches, while XRT increases ground clearance to 7.0 inches. The approach angle measures 17.5 degrees, with XRT listed at 19.8 degrees, and the departure angle measures 25.4 degrees, with XRT listed at 30.0 degrees. Interior measurements include 39.8 inches of front head room, 38.7 inches of rear head room, 41.7 inches of front leg room, 39.4 inches of rear leg room, and 57.7 inches of shoulder room in both rows. SAE volume measures 132.8 cubic feet for total interior volume, 106.5 cubic feet for passenger volume, 26.3 cubic feet of cargo capacity with the rear seats up, 58.5 cubic feet with the rear seats folded, and 0.85 cubic feet for the front trunk.
