2026 Hyundai IONIQ 5 N near Lexington, GA
The 2026 Hyundai IONIQ 5 N introduces a new benchmark for electric performance with a technical package that is both powerful and highly engineered. This vehicle combines dual-motor propulsion, advanced battery architecture, precision handling, and extensive safety technologies. Every detail has been designed to maximize performance, efficiency, and driver confidence.
Powertrain Engineering and Performance Output
The 2026 Hyundai IONIQ 5 N is equipped with a dual permanent-magnet synchronous motor system that drives all four wheels. Standard output is rated at 448 kW, equal to 601 horsepower, while the N Grin Boost function temporarily increases maximum output to 478 kW or 641 horsepower. Torque delivery is substantial, producing 740 Nm, or 545 pound-feet, under normal conditions, with peak torque of 770 Nm, or 568 pound-feet, under N Grin boost mode.
This power is supported by a single-speed reduction gear transmission. Gear ratios are optimized at 2.263 for the front and 2.265 for the rear with a final gear ratio of 4.706. A front dog clutch disconnector allows efficient power management, while the rear operates without a clutch. The drivetrain provides immediate torque delivery through an electronically managed all-wheel drive system.
Vehicle speed reaches up to 162 miles per hour, supported by software-based drive mode selections. The steering-wheel-mounted controls allow the driver to switch between Eco, Normal, Sport, N, and two custom N configurations. This provides flexibility in adapting the vehicle to a wide range of conditions.
High-Capacity Battery System
The 2026 Hyundai IONIQ 5 N features an 84.0 kWh lithium-ion battery with a 697-volt architecture. Developed with SK Innovation, the system uses a 2P192S structure. Energy density is measured at 78.5 Wh per pound, while total battery weight is listed at 1,071 pounds. The pack supports discharge power up to 535 kW and charge intake at 432 kW.
Charging is supported through an ultra-fast system rated at 800 volts and 350 kW capacity, enabling rapid replenishment. The onboard charger offers 10.9 kW output with a density of 1.4 kVA per liter. A power-operated NACS charge port is located on the rear passenger-side quarter panel for easy access.
Battery preconditioning and heating functions are standard, ensuring consistent performance in cold environments. The Hyundai integrated Vehicle to Load (V2L) feature allows two-way power transfer for external devices, extending the functionality of the electric platform.
Precision Steering, Brakes, and Suspension
The steering system is rack-mounted and motor-driven, delivering power assistance through a ratio of 12.54:1. With only 2.29 turns lock-to-lock and a curb-to-curb turning diameter of 40.7 feet, maneuverability is highly responsive.
Braking performance is managed by large ventilated discs. The front discs measure 400 mm by 34 mm, and the rear discs measure 360 mm by 20 mm. An integrated electronic brake booster, electronic brake-force distribution, brake assist, and regenerative brake control are all standard. N e-Shift virtual paddles on the steering wheel allow simulation of gear changes while controlling regenerative levels.
The suspension system uses MacPherson® struts in the front and a multi-link configuration in the rear. Both feature electronically controlled dampers tuned for high performance. This delivers stability in high-speed operation and comfort in daily use.
Structural Design and Chassis Composition
The 2026 Hyundai IONIQ 5 N is built on a unibody platform made from advanced high-strength steel combined with high-tensile steel. This composition enhances rigidity while reducing weight. Body design is optimized for aerodynamics with a low coefficient of drag measured at 0.313.
Dimensions include a wheelbase of 118.1 inches, an overall length of 185.6 inches, a width of 76.4 inches, and a height of 62.4 inches. Minimum ground clearance is 5.6 inches. Interior volume totals 133.2 cubic feet, with passenger space of 107 cubic feet and cargo capacity of 26.1 cubic feet with seats up or 59.3 cubic feet when folded.
Exterior Design and Functional Elements
The exterior is defined by N-exclusive styling with forged alloy wheels measuring 21 by 9.5 inches, weighing 32 pounds each. The tires are Pirelli P ZERO PZ4 HN-spec with PNCS and ELECT+ technology for enhanced grip and reduced noise.
Lighting features include LED daytime running lights, projector-type LED headlights, LED taillights, high beam assist, and a dedicated N-exclusive center high-mounted stop lamp. Rain-sensing aero wipers, heated power-folding mirrors with blind-spot indicators, and flush-type body-colored door handles with automatic operation are standard.
Functional accents include gloss black bumpers, luminous orange N details, active grille shutters, aerodynamic air flaps, and solar laminated glass. The smart power liftgate and integrated rear spoiler with LED stop light combine convenience with performance styling.
Driver-Focused Interior and Technology Systems

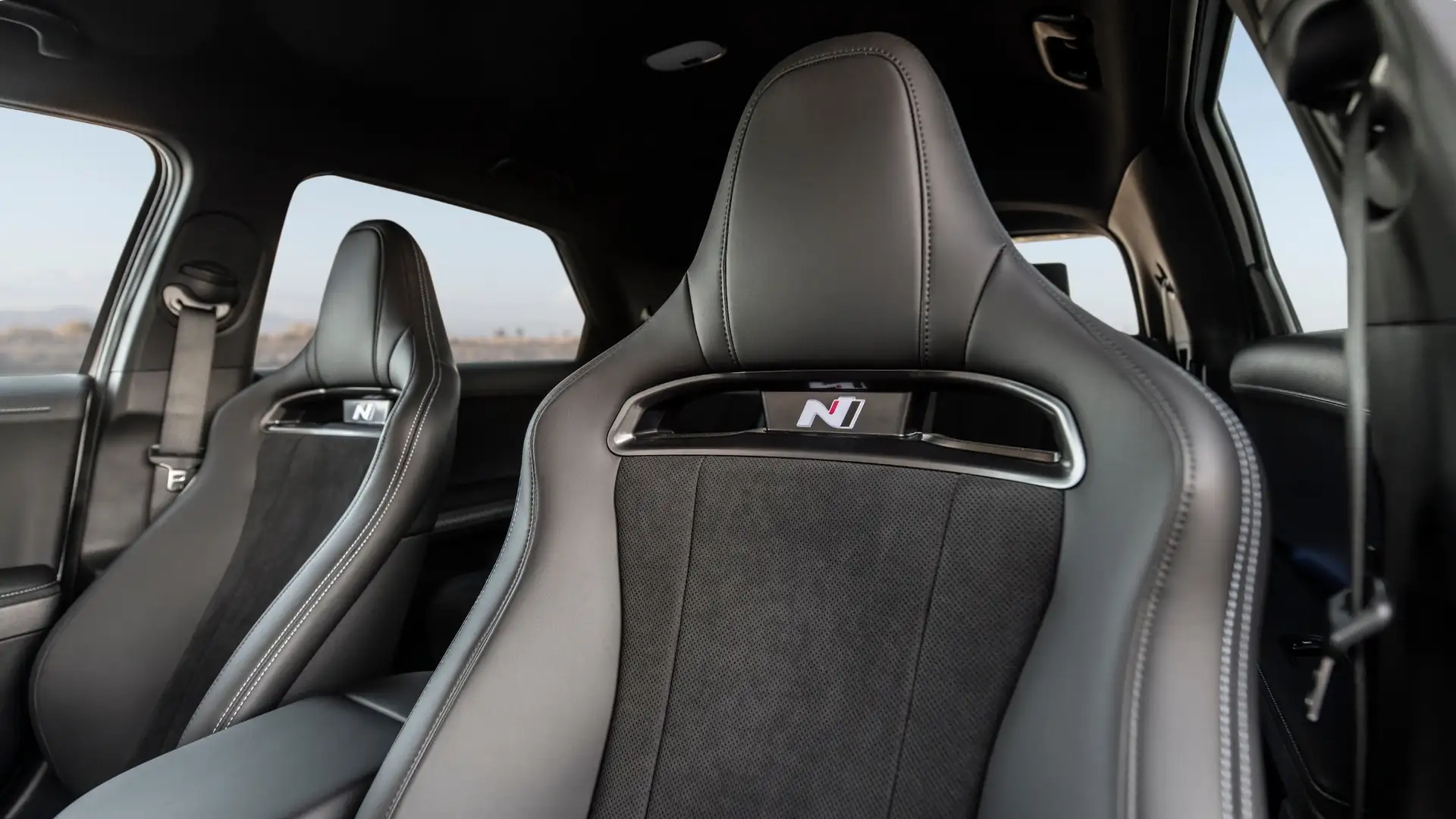

The cabin accommodates five passengers with seating surfaces in Eco Alcantara® and H-Tex®. Front sport bucket seats include integrated illumination and support heating and ventilation. The rear 60/40 bench folds, slides, and reclines for flexibility.
Technology includes a 12.3-inch touchscreen with onboard navigation, AM/FM/SiriusXM®, HD Radio™, and Bose® premium audio with an external amplifier and eight speakers. Connectivity integrates wireless Android Auto™ and Apple CarPlay®, Bluetooth® with dual-device capability, multiple USB-C ports, and a 15-watt wireless phone charger.

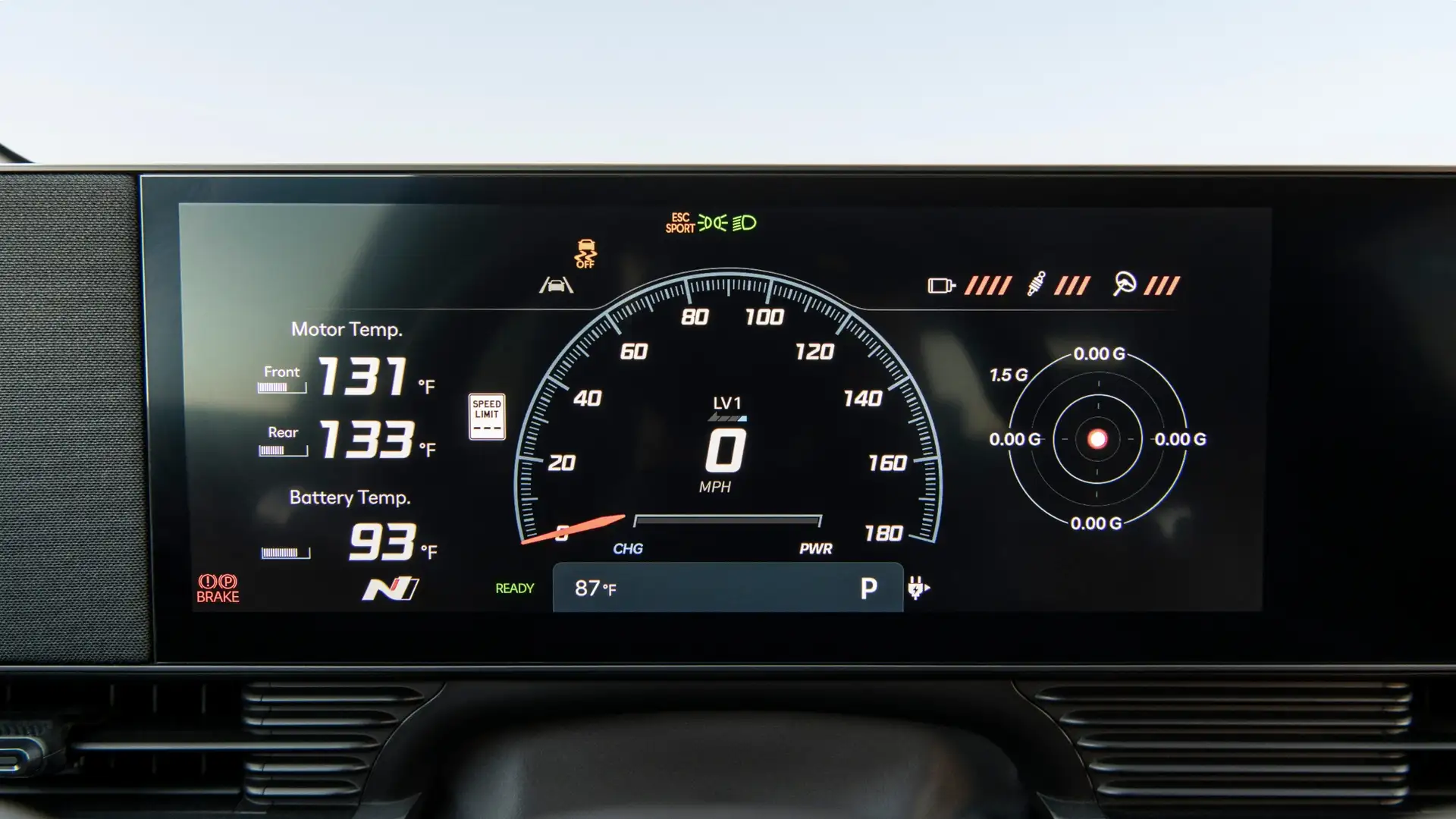

Instrumentation is provided through a 12.3-inch digital cluster with N mode and EV display. Information includes speedometer, system power gauge, regenerative braking level, and smart cruise control data. The steering wheel integrates regenerative paddles, heated leather wrapping, audio and phone controls, and adaptive cruise functions.
Additional features include dual-zone automatic climate control with heat pump, rear-seat sunshades, ambient lighting with 64 color options, an auto-dimming rearview mirror with HomeLink, Bluelink®+ connected services, Hyundai Digital Key 2 Premium, and Wi-Fi hotspot capability.
Safety and Security Systems
The 2026 Hyundai IONIQ 5 N carries a full set of active and passive safety technologies. Airbags include advanced front, side-impact, and curtain coverage with rollover sensors. All seating positions include three-point seatbelts with pretensioners and load limiters. LATCH anchors are provided for child seats, and power child safety locks are standard.
Electronic Stability Control, Traction Control, and Vehicle Stability Management enhance control in demanding conditions. Forward Collision-Avoidance Assist recognizes vehicles, pedestrians, and cyclists and extends to junction turning, crossing detection, and lane change scenarios. Lane Keeping Assist, Lane Following Assist, Highway Driving Assist 2, Blind-Spot Collision-Avoidance Assist, Rear Cross-Traffic Collision-Avoidance, and Parking Collision-Avoidance Assist all contribute to a comprehensive safety network.
Driver attention monitoring, forward attention warning, intelligent speed limit assist, and safe exit assist add further protection. A radar-based rear occupant alert system ensures passenger safety in the rear seats. The structural frame integrates front crumple zones, bodyside reinforcements, and bumpers tested to 2.5 mph.
Visit ALM Hyundai of Athens near Lexington, GA
The 2026 Hyundai IONIQ 5 N combines high-output electric propulsion, advanced safety technologies, intelligent digital integrations, and practical interior design. Drivers seeking precision control, consistent battery performance, and the advantage of all-wheel drive will find these elements fully integrated into this vehicle. To experience these capabilities directly, schedule a test drive with ALM Hyundai of Athens near Lexington, GA. Our team is ready to provide full demonstrations of its 641-horsepower N Grin Boost system, ultra-fast charging technology, and advanced driver assistance features. We invite you to explore every technical detail, feel the responsiveness of its performance engineering, and see how this vehicle sets a new standard for electric performance SUVs.
