2025 Hyundai Kona Electric near Buford, GA
The 2025 Hyundai Kona Electric operates with a Permanent-Magnet Synchronous Motor engineered for consistent torque delivery and controlled power distribution. The SE trim produces 99 kW, equivalent to 133 horsepower, while SEL, N Line, and Limited trims increase output to 150 kW, or 201 horsepower. All configurations generate 188 lb-ft of torque, providing immediate acceleration without gear transitions. The drivetrain configuration is front-wheel drive, paired with a single-speed reduction-gear transmission. The gear ratio is set at 10.65, optimizing efficiency and maintaining smooth propulsion across varying speeds.
Shift-by-wire technology governs gear selection through an electronic interface rather than mechanical linkage. The vehicle operates on a 12-volt non-traction electrical system supporting auxiliary components. Maximum electronically governed vehicle speed reaches 101 mph on the standard range model and 107 mph on long-range variants. Drive Mode Select allows transitions between Eco, Normal, Sport, and Snow modes, adjusting throttle sensitivity and traction parameters according to driving conditions.
Lithium-Ion Battery Engineering and Energy Density
The 2025 Hyundai Kona Electric offers two lithium-ion battery configurations designed for efficiency and extended operation. The SE trim uses a 48.6 kWh battery operating at 269 volts. The SEL, N Line, and Limited trims utilize a 64.8 kWh battery operating at 358 volts. The standard range battery system structure is 1P72S, while the long-range battery structure is 1P96S, reflecting differences in cell configuration and capacity.
Energy density measures 63.3 Wh per pound for the standard battery and 69.1 Wh per pound for the long-range battery under standard charge conditions. The standard battery weighs 767.9 pounds, excluding cooling components, while the long-range battery weighs 938.2 pounds under the same conditions. A battery heating system is standard across all trims, supporting consistent operation in low temperatures.
Driving range ratings vary by configuration. The SE achieves an estimated 200 miles. The N Line provides 230 miles of service. The SEL and Limited trims extend the range to 261 miles. These variations correspond directly to battery capacity and vehicle specification differences.
Charging Systems and Electrical Infrastructure
Charging capability is supported through multiple systems. All trims include an 11 kW onboard charger for Level II charging. From a 10 percent to a 100 percent charge, the standard range battery requires approximately 4 hours and 55 minutes. The long-range battery requires approximately 6 hours and 5 minutes under the same conditions.
Level III DC fast charging supports up to 100 kW on a 400-volt system. Charging from 10 percent to 80 percent takes approximately 43 minutes for both battery configurations. The charge port is positioned at the front grille on the driver’s side and features a push-open-and-close integrated design. A Level 1 charging cable with an in-cable control box rated at 120 volts and selectable 12A, 10A, or 8A outputs is included.
Exterior vehicle-to-load capability is standard, allowing the battery to supply external power for compatible equipment. This function expands utility by converting stored electrical energy into usable output for approved devices.
Steering Precision and Suspension Geometry
The steering system uses rack-and-pinion architecture combined with column-mounted motor-driven power steering. The overall steering ratio is 13.6 to 1. The system requires 2.5 turns from lock to lock, contributing to responsive directional input. The turning diameter measures 34.8 feet curb to curb, supporting maneuverability in confined spaces.
Front suspension utilizes a MacPherson® strut design with coil springs and shock absorbers. The rear suspension adopts a multi-link configuration with integrated shock absorbers. This arrangement balances ride control and stability. Lubricant oil capacity for the drive system is 2.8 liters, supporting the single-speed reduction gear assembly.
Braking Systems and Regenerative Control
Braking components consist of 305 mm by 25 mm ventilated front discs and 300 mm by 10 mm solid rear discs. The Anti-lock Braking System with Electronic Brake-force Distribution operates through four wheels, four channels, and four sensors. Brake Assist and Hill Start Assist Control are standard across all trims.
An Active Hydraulic Booster integrates with regenerative braking functions. Steering wheel-mounted regenerative brake control paddles allow adjustment of energy recovery levels during deceleration. Electric parking brake functionality replaces traditional mechanical systems with electronic control.
Electronic Stability Control, Traction Control System, and Vehicle Stability Management work together to maintain directional control during traction-loss events. The Tire Pressure Monitoring System provides individual tire indicators for pressure monitoring.
Structural Composition and Body Dimensions
The body structure uses a unibody construction composed of Advanced High-Strength Steel and High Tensile Steel. This composition supports rigidity and crash energy distribution. Front crumple zones and bodyside reinforcements are integrated to manage impact forces. The vehicle includes 2.5-mph bumpers and an electronic shift lock system with ignition key interlock.
Exterior dimensions include a 104.7-inch wheelbase and an overall length of 171.5 inches. The N Line measures 172.6 inches in length. Overall width is 71.9 inches. Overall height with roof rails measures 62.0 inches, increasing to 62.2 inches in certain configurations. Ground clearance is 5.9 inches. Roof rails support up to 220 pounds of load capacity.
Curb weight ranges from 3,571 pounds on the SE to 3,759 pounds on the SEL and 3,891 pounds on the Limited. Gross Vehicle Weight Rating measures 4,652 pounds for the SE and 4,883 pounds for the SEL and Limited. Maximum trailer weight is not recommended.
Wheel Configurations and Exterior Lighting Systems
Wheel options include 17 by 7.0J alloy wheels paired with 215/60R17 tires on SE, SEL, and Limited trims. The N Line features 19 by 7.5J alloy wheels with 235/45R19 tires. A Tire Mobility Kit replaces a spare tire across all trims.
LED projector headlights are standard. The Limited trim adds LED turn signal integration within the headlight assembly. LED daytime running lights and LED center high-mount stop lamps are standard. LED combination taillights incorporate turn signal functionality. Automatic headlights and High Beam Assist provide adaptive illumination control.
Active grille shutters located within the lower front grille improve aerodynamic efficiency. Heated body-color side mirrors include LED turn indicators. Privacy glass is included on SEL, N Line, and Limited trims. A hands-free Smart Liftgate with auto-open functionality is available on the Limited.
Interior Dimensions and Seating Configuration
The cabin seats five occupants. Passenger interior volume measures 99.0 cubic feet and decreases slightly to 96.8 cubic feet on models equipped with a sunroof. Total interior volume measures 124.5 cubic feet or 122.3 cubic feet with a sunroof. Front headroom measures 40.0 inches and 38.3 inches with a sunroof. Rear headroom measures 38.3 inches. Front legroom measures 41.7 inches, while rear legroom measures 36.4 inches.
Cargo capacity measures 25.5 cubic feet with rear seats upright and 63.7 cubic feet with rear seats folded. A front under-hood storage tray provides 0.95 cubic feet of additional storage. A dual-level cargo floor and four cargo area anchors are standard.

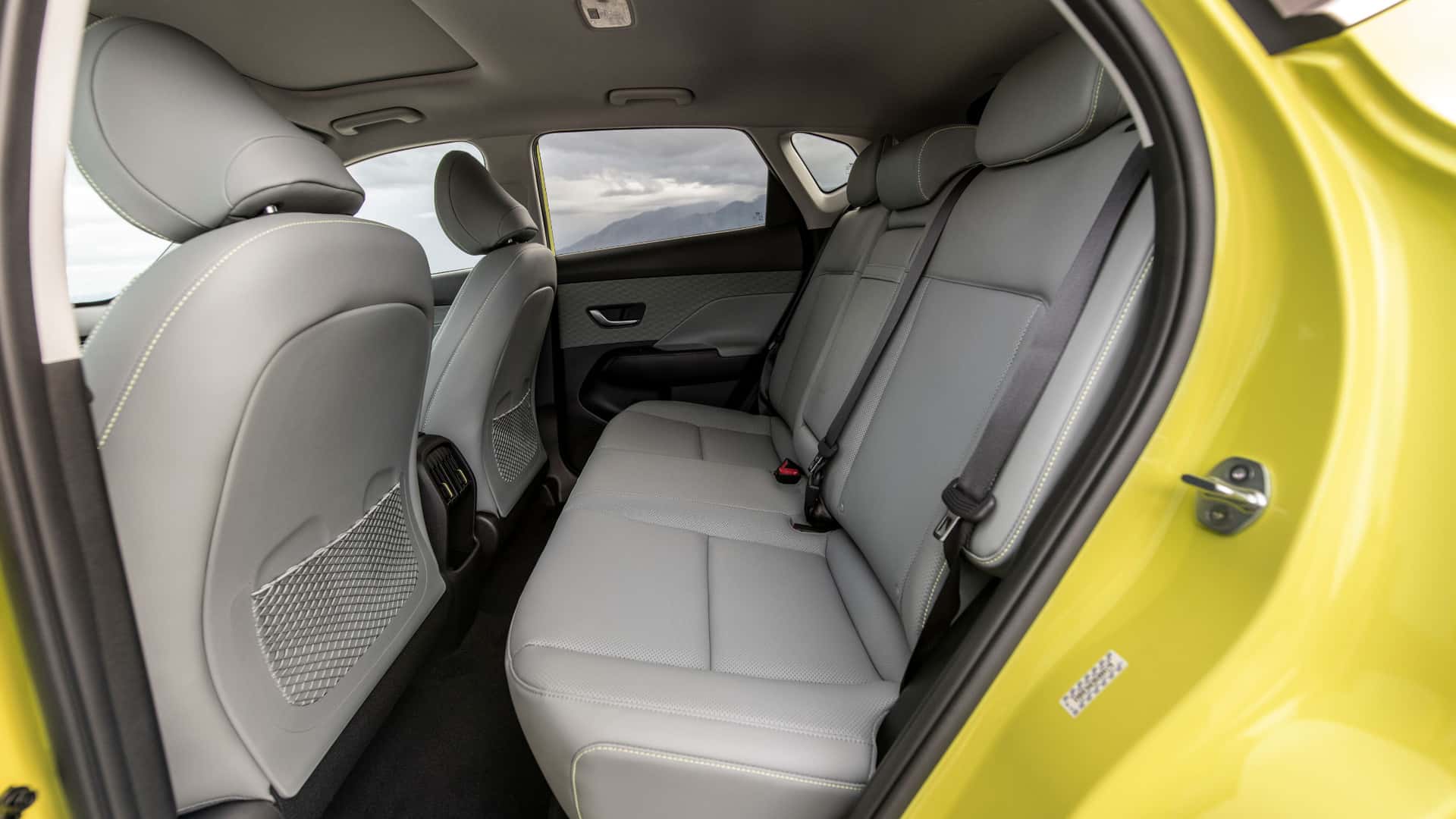

Seating materials include cloth on SE and SEL, N Line Black Alcantara combination seats on N Line, and H-Tex® leatherette-trimmed seats on Limited. The driver’s seat is 6-way adjustable on SE and becomes 8-way power adjustable with lumbar support on higher trims. Heated front seats are included on SEL and above, with ventilated front seats available on Limited. The rear seats feature a 60/40 split-folding configuration with adjustable head restraints and recline capability.
Digital Interface and Connectivity Systems

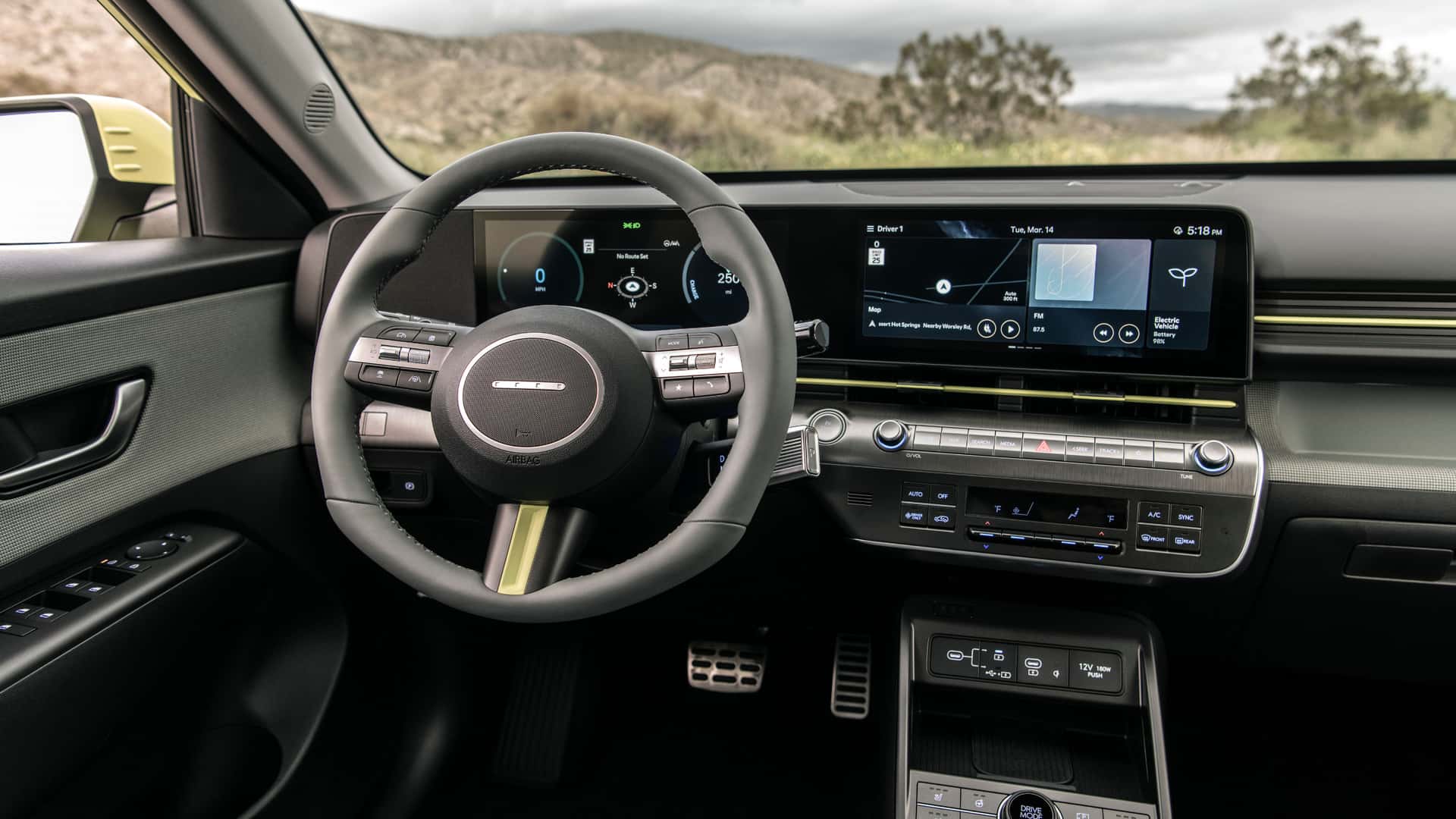

All trims include a 12.3-inch touchscreen navigation system with 1920 by 720 resolution. Audio functionality supports AM, FM, SiriusXM®, and HD Radio™ through a six-speaker system. N Line and Limited trims add a Bose® premium audio system with eight speakers and an external amplifier.
Wireless Apple CarPlay® and wireless Android Auto™ are standard. Front USB-C ports include one power and data outlet and one power-only outlet. Rear passengers receive dual USB-C charging ports. A 12.3-inch digital instrument cluster displays the speedometer, system power gauge, charge level, trip data, and drive mode indicators. Adjustable illumination is included.
Bluelink® Connected Car System, WiFi hotspot capability, and Over-the-Air software updates are standard. Hyundai Digital Key 2 Touch using NFC technology is available on N Line and limited trims. Navigation-based Smart Cruise Control with Stop and Go is standard. Highway Driving Assist I, Intelligent Speed Limit Assist, and Driver Attention Warning integrate into the driver assistance interface.
Safety Technologies and Collision Mitigation Systems
The 2025 Hyundai Kona Electric includes advanced airbag coverage consisting of driver and front passenger airbags, front seat-mounted side-impact airbags, and side curtain airbags with rollover sensors. Seatbelt pretensioners and load limiters function for front and rear outboard seating positions. LATCH anchors are included for child restraint systems.
Forward Collision-Avoidance Assist detects pedestrians, cyclists, junction-turning scenarios, and direct oncoming vehicles. Blind-Spot Collision Avoidance Warning and Rear Cross-Traffic Collision Avoidance Assist provide lateral monitoring. Lane Keeping Assist and Lane Following Assist support steering correction. The Safe Exit Warning monitors approaching traffic when doors are opened. The Rear Occupant Alert uses door logic detection.
Parking distance warning for forward, side, and reverse directions is available on limited. Blind-Spot View Monitor and Surround View Monitor are also available on Limited, along with Remote Smart Parking Assist.
Schedule a Test Ride at ALM Hyundai of Athens
We invite you to examine the 2025 Hyundai Kona Electric in detail at ALM Hyundai of Athens near Buford, GA. Our team can arrange a test drive to demonstrate the 201-horsepower electric motor performance, regenerative braking adjustment, and integrated digital instrumentation. You can evaluate charging interface accessibility, suspension response, and steering calibration under controlled conditions. This hands-on session allows you to assess battery range specifications, safety system activation, and connectivity integration directly. Contact us to schedule your appointment and review the technical attributes of the 2025 Hyundai Kona Electric in person.
